Integrated flow rate: 0-250mL/min
Real-time flow rate:
+ 50mL/min: 0.0-34.5kPa
+ 100mL/min: 0.0-30.0kPa
+ 150mL/min: 0.0-25.0kPa
+ 200mL/min: 0.0-21.0kPa
+ 250mL/min: 0.0-16.5kPa
Selectable modes: Timer mode, Fixed parameter mode
Display:
+ LC digital display (backlit)
+ Real-time Flow Rate: mL/min
+ Integrated Flow Rate: 0.000-9.999L, 10.00-99.99L, 100.0-999.9L
+ Elapsed sampling time: 0-999min
Accuracy: Standard deviation of +/-5%
Operating Temperature / Humidity range: 0-40ºC, 10-90%RH (no condensation)
Power source: Alkaline dry battery AA type (x 2) allows 10 hrs. continuous operation with 2 AA batteries
Dimensions: 80(W) x 40(D) x 140(H)mm
Weight: 300g(including batteries)
|
 |

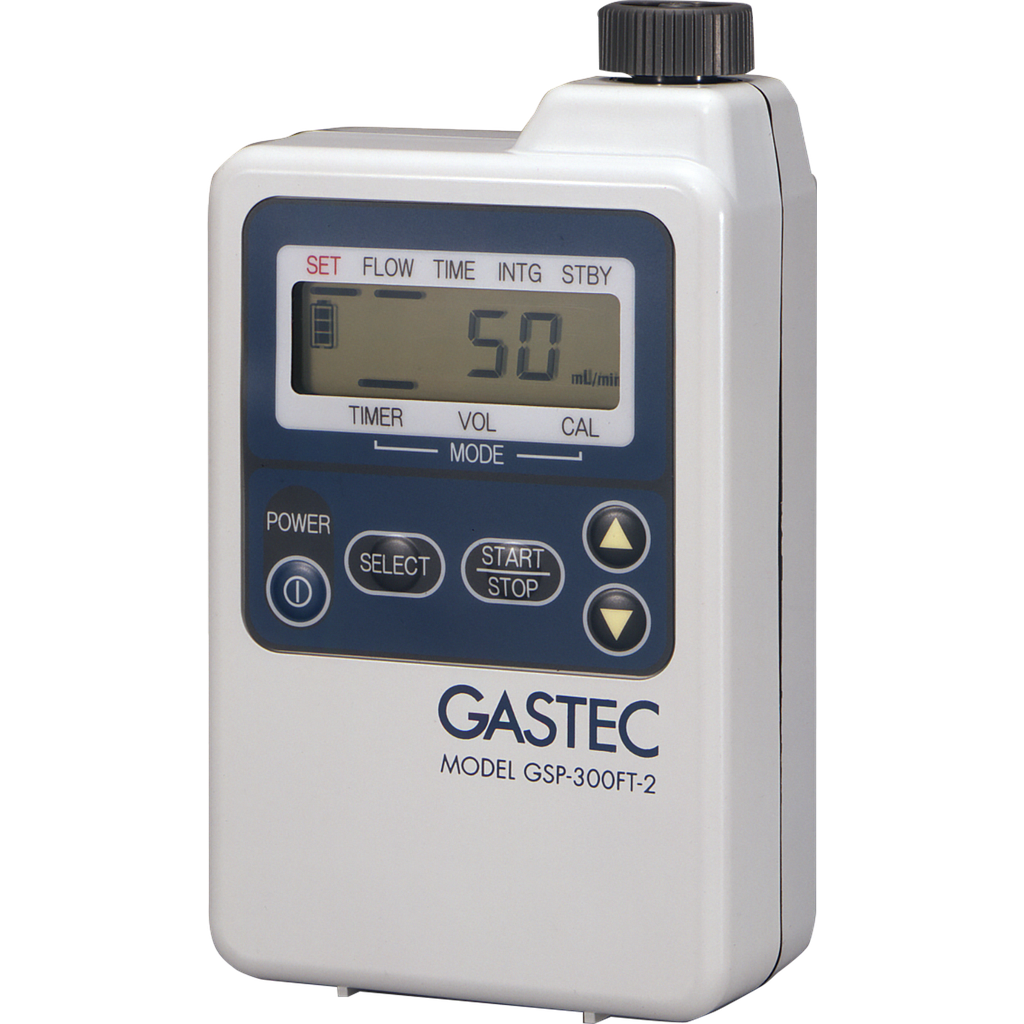

GASTEC developed a detector tube system utilising an electric suction pump in response to growing user needs for improvements in measuring time and routine in the working environment. Moreover, although the reagent filling density of detector tubes is generally high, making effective sampling with conventional electric suction pumps next to impossible at times, the compact GASTEC GSP-300FT-2 has a powerful suction performance that enables effective sampling with any of the designated detector tubes.
GASTECs new detection tube measurement system provides performance meeting the relevant measurement criteria for the respective working environment
| GSP-300FT-2 specifications | |||||||
| Integrated flow rate: | 0-250mL/min | ||||||
| Real-time flow rate Parameters: | 50mL/min: 0.0-34.5kPa 100mL/min: 0.0-30.0kPa 150mL/min: 0.0-25.0kPa 200mL/min: 0.0-21.0kPa 250mL/min: 0.0-16.5kPa |
||||||
| Selectable modes: | Timer mode: Automatic shut-off of air pump at preset time; digital display of integrated flow rate Fixed parameter mode: Automatic shut-off of air pump at preset volume; digital display of elapsed sampling time |
||||||
| Display: | LC digital display (backlit)
|
||||||
| Configuration / features: | Mass flow sensor (with temperature correction) and diaphragm suction pump, dustproof, splashproof construction, automatic start function, and with initial presetting circuit for maintaining a constant volume of flow | ||||||
| Accuracy of real-time/integrated flow volume values: | Standard deviation of +/-5% (for a minimum real-time flow of 50mL/min at a fixed temperature) | ||||||
| Operating Temperature / Humidity range: | 0-40ºC(32- 104 ºF) 10-90%RH (no condensation) | ||||||
| Power source: | Alkaline dry battery AA type (x 2) allows 10 hrs. continuous operation with 2 AA batteries | ||||||
| Dimensions: | 80(W) x 40(D) x 140(H)mm | ||||||
| Weight: | 300g(including batteries) | ||||||
| Accessories: | Two alkaline dry battery AA type (x 2), detector tube adaptors, dustproof filters (x 5), screwdriver, black suction nipples (already attached before shipping), instruction manual, etc | ||||||
| Approval | CE-marking(2004/108/EC) | ||||||
Chọn mua khí độc Gastec dùng với bơm GV-100S, GV-110S theo bảng sau
|
No |
Tube |
Name |
Chemical |
Measuring Range |
Nr. |
|
1 |
4TP |
Hydrogen Sulphide Tube for Automatic Gas Sampling Pump |
H2S |
0.5 - 16.0 ppm |
10 |
|
2 |
8TP |
Chlorine Tube for Automatic Gas Sampling Pump |
Cl2 |
0.05 - 0.6 ppm |
10 |
|
3 |
9P |
Nitrogen Dioxide Tube for Automatic Gas Sampling Pump |
NO2 |
0.02 - 0.20 ppm |
10 |
|
4 |
12TP |
Hydrogen Cyanide Tube for Automatic Gas Sampling Pump |
HCN |
0.3 - 9.0 ppm |
10 |
|
5 |
17TP |
Hydrogen Fluoride Tube for Automatic Gas Sampling Pump |
HF |
0.05 - 9.0 ppm |
10 |
|
6 |
91P |
Formaldehyde Tube for Automatic Gas Sampling Pump |
HCHO |
0.02-1.44 ppm |
10 |
|
7 |
91 PL |
Formaldehyde Tube for Automatic Gas Sampling Pump |
HCHO |
0.01-0.80 ppm |
10 |
|
8 |
91TP |
Formaldehyde Tube for Automatic Gas Sampling Pump |
HCHO |
0.01-1.75 ppm |
10 |
|
9 |
102TP |
Hexane Tube for Automatic Gas Sampling Pump |
CH3(CH2)4CH3 |
2-80ppm |
10 |
|
10 |
111TP |
Methyl Alcohol Tube for Automatic Gas Sampling Pump |
CH3OH |
20 - 300 ppm |
10 |
|
11 |
113TP |
Isopropyl Alcohol Tube for Automatic Gas Sampling Pump |
CH3CH(OH)CH3 |
20 - 400 ppm |
10 |
|
12 |
121P |
Benzene Tube for Automatic Gas Sampling Pump |
C6H6 |
250 - 3000 μg/m3 |
5 |
|
13 |
122P |
Toluene Tube for Automatic Gas Sampling Pump |
C6H5CH3 |
100-7000μg/m3 |
5 |
|
14 |
122TP |
Toluene Tube for Automatic Gas Sampling Pump |
C6H5CH3 |
2 - 80 ppm |
5 |
|
15 |
123TP |
Xylene Tube for Automatic Gas Sampling Pump |
C6H4(CH3)2 |
2 - 80 ppm |
5 |
|
16 |
127P |
