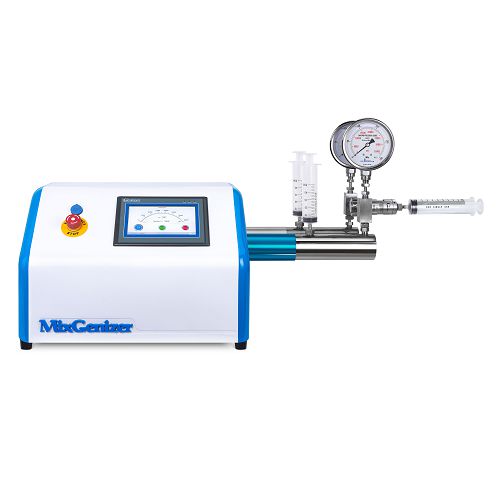

Genizer MixGenizer-30k High Pressure Micromix Homogenizer (100mL/min, 1mL, 30,000psi)

Max. Flow Rate: 100mL/min

Min. Sample: 1mL

Max. Pressure: 30,000psi

Dimensions(cm): 85×50×35

Weight: 58kg (128lbs)

Max. Temp.: 80ºC (176ºF)

Power: 220V/110V

Cleaning: Flush to clean

Application: Nano emulsion, fat emulsion, liposome, cell disruption, nano dispersion, deagglomeration, nano precipitations

Features: Notable shear rate; powerful micromix; greater repeatability; guaranteed scalability

Standard features

Parts: Y-type diamond mixing chamber

Control System: High pressure programming control systems: touch screen, speed control, auto stop control by volume, time, pressure or temperature, settable volume control as small as 1mL, display of flow rate and time, overload protection

Pressure Gauge: Digital display on the touch screen

Inlet Type: 1/4" HP coupling

Outlet Type: 1/4" HP coupling

Inlet Speed: 0-100mL/min ± 0.1mL/min

Mixing Accuracy: 1%

Mixing Arrange: 25%-100%

Inlet Reservoir: 20mL syringe or S/S cylinder

Outlet Reservoir: 20mL syringe or S/S cylinder

Product Material: 316L stainless steel, tungsten carbide, viton, teflon

Material Standard: Sanitary grade, FDA, GMP

Description:

A homogenizer designed especially for mixing and homogenizing the sample fluids from two or more inlet ports.

Application:

Nanodispersions, nanoemulsions and nanotube

Cell disruption

Micro/nanoencapsulation in polymers, liposomes and oils

Solid dispersion and suspension, deagglomeration

Performance:

Energy efficient, 1/2 energy loss of the most homogenizers

Small (integrated design delivers the light weight and small dimensions)

Smart (programming control systems confer diligent functions: controlled inlet volume ± 0.1mL; auto stop with time/volume)

Silent (noiseless performance)

Strong (more than 100 mL/min at 30,000 psi)

CE compliant and RoHS compliant
