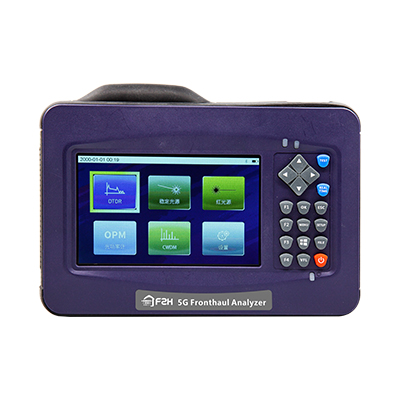

Grandwaytelecom FCA-20 5G Fronthaul Analyzer

CWDM Optical Power Meter

Detector Type: InGaAs

Fiber Type: SM fiber

Calibrated Wavelength: 1271~1611nm

Test Range: -40~+10dBm

Number Of Channels: 18

Channel Spacing: 20nm

Accuracy: ±1dB

Display Resolution: 0.01dB

Isolation: >25dB

Threshold Setting: 10 groups

Insertion Loss: <1.5dB

Data Storage: 500 groups

OTDR

Fiber Type: SMF (ITU-T G.652)

Wavelength: 1650nm±5nm

Dynamic Range: 24dB

Distance Range: 1km, 2km, 5km, 10km, 20km, 40km, 80km

Pulse Width: 3ns/5ns/10ns/30ns/50ns/100ns/275ns/500ns/1us/10us/20us

Dead-zone: Event dead-zone ≤1m; Attenuation dead-zone ≤4m

IOR Setting: 1.30000~1.70000

Sampling Points: 64000

Sampling Resolution: 0.05m (1km)

Distance Accuracy: ±(1m + Test distance × 3×10⁻⁵ + Sampling resolution) (excluding IOR uncertainty)

Loss Accuracy: 0.1dB

Linearity: 0.1dB

Reflectance Accuracy: ±2dB

Stable Laser Source

Wavelength: 1650nm±5nm

Output Power: >12dBm

Working Mode: CW/270Hz/1kHz/2kHz

VFL

Wavelength: 650±10nm

Output Power: 10mW

Working Mode: CW/1Hz/2Hz

Others

Optical port: FC/UPC×2

Charging port: USB Type-C

Wireless interface: Bluetooth

Data Storage: Pluggable micro SD card

Battery: ≥6700mAh, Battery life in standby mode > 48 hours

Working Temp: -10℃~+60℃

Humidity: 0~90% (Non condensing)

Dimension: 195L × 141W × 44H (mm)

Weight: 0.8kg
