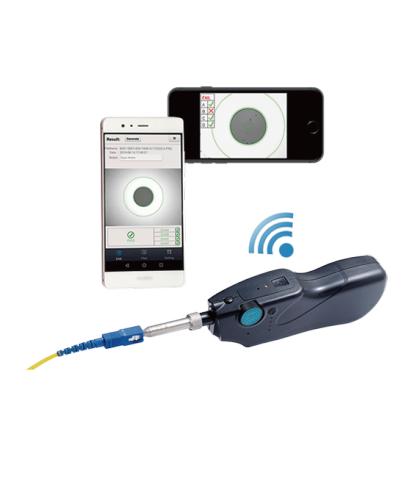

Grandwaytelecom FIM-17 Optical Fiber Microscope (400X)

Magnification: 400X

Resolution: <1.0μm

Field of View:

X: 0.383mm

Y: 0.287mm

Laser Source: Blue LED

Focus Wheel: Unidirectional single-way

Focus Speed: 1~3 seconds

Alignment: >98%

Snapshot Button: Available

Quick switch: WiFi / USB

USB Port: Micro USB for charging and data transfer

Connection Standard: Wi-Fi 802.11, USB 1.0/2.0

Wireless Frequency: 2.4GHz

Wireless Transmission Distance: 20m

Smartphone Compatibility: Android 4.4 and above; IOS 8.0 and above

Voltage: 5V

Battery: 3400mAh Lithium battery

Working time: ≥8h

Charging Time: ≤4h

Dimension: 19*5*3cm

Weight: 0.55kg

Working Temperature: -10℃ ~50℃

Storage Temperature: -20℃ ~60℃

Humidity: <90% (non-condensing)

Standard Accessories:

FIM-17 Fiber Microscope: 1pc

2.5 PC-M (For 2.5mm PC male connector): 1pc

SC-PC-F(For SC-PC female bulkhead): 1pc

FC-PC-F(For FC-PC female bulkhead): 1pc

LC-PC-F (For LC-PC female bulkhead): 1pc

USB cable: 1pc

Soft case: 1pc

Application(Software on Android & iOS for end face check): 1pc
