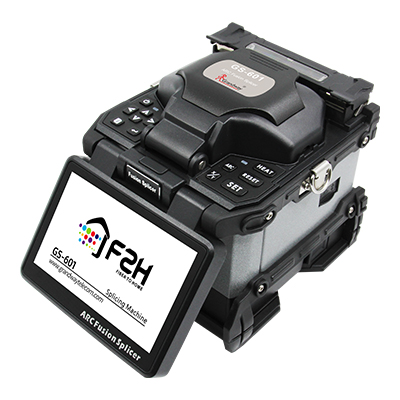

Grandwaytelecom GS-601 Fusion Splicer

Alignment method: 6 motors core to core alignment

Applicable fiber: SM(G.652), MM(G.651), DS(G.653), NZDS(G.655), BIF(G.657)

Cladding diameter: 80–150μm

Coating diameter: 160–3000μm

Cleaved length: 5–16mm (coating diameter<250μm), 16mm (coating diameter:250–3000μm)

Typical splice loss: SM: 0.02dB; MM: 0.01dB; DS/NZDS/BIF: 0.04dB

Return loss: >60dB

Splicing program: 40 groups

Operation mode: Manual / Automatic

Auto-heating: Available

Typical splice time: 6 seconds

Typical heating time: 18 seconds for 60mm and 40mm shrinkable sleeves

Fiber magnification: 250X(X or Y view), 125X(X and Y view)

Viewing display: Dual high sensitivity camera, 5 inch 800×480 LCD Touch Screen Monitor

Data storage: 4000 groups data records

Loss evaluation: Available

Tension test: 1.8~2.25N

Interface: GUI menu interface, easy for operation

Battery capacity: 5200mAh Li-battery, 250 cycles splicing and heating

Power supply: Adaptor, input: AC100–240V(50/60Hz), output: DC11–13.5V

Electrode life: More than 4000 ARC discharges, easy to replace

Terminals: USB 2.0 port, for software upgrading, records exporting

Operating: Altitude 0–5000m, Humidity 0–95%, Temperature -10℃~+50℃, Wind: max 15m/s

Dimension/Weight: 156mm(L)×141mm(W)×156mm(H) / 2.45kg (including battery)
