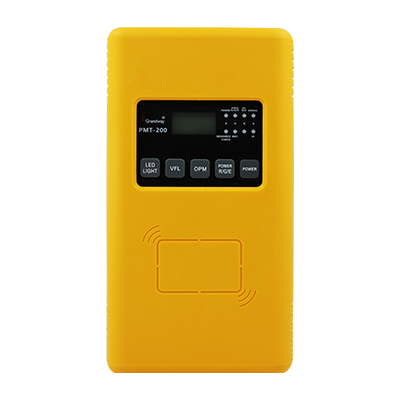

Grandwaytelecom PMT-200 PON Installation Tester

Grandway GPON SFP

GPON ONT emulation: Grandway GPON SFP

Optical interface: SC/APC or SC/UPC

Standard:

Comply with g.984.1/2/3/4 GPON standard

Comply with g.988 OMCI standard

Test result: OLT PON ID, OLT Tx power, ONT Rx power, ODN loss, ONT activation status

Others:

VFL:

Output power: 10mw

Working wavelength: 650±10nm

Working mode: CW/2Hz

OPM :

Calibrated wavelength: 850/1300/1310/1490/1550nm

Testing range:-70~+10dBm

Optical interface:

1*SC PON port

1*2.5mm universal OPM port

1*2.5mm universal VFL port

Wireless: WiFi connection with Android phone

Power supply: 6700mAh lithium battery

Working temp: 0~45℃

Dimension: 175x94x46.5mm

Weight: 577g
