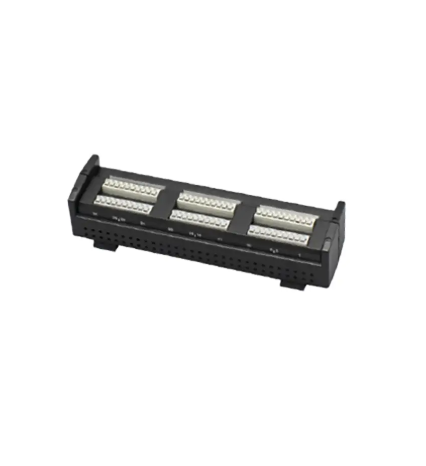

GRAPHTEC B-563SL-30 30CH Screwless Input Terminal (20 mV ~ 100V)

Number of Channels: 30

Voltage Measurement Range: 20 mV to 100V

Temperature Measurement Type: Thermocouple

Thermocouple Types: K, J, E, T, R, S, B, N, C

Humidity Range: 0 to 100% (Requires B-530 Humidity Sensor, not included)

Maximum Input Voltage for 20 mV to 2V Range: 60Vp-p

Maximum Input Voltage for 5V to 100V Range: 110Vp-p

Maximum Input Voltage between Input Terminal/Input Terminal: 60Vp-p

Maximum Input Voltage between Input Terminal/GND: 60Vp-p

Voltage Measurement Accuracy: ±0.1% of F.S.

Dimensions: 240 x 158 x 52.5 mm
