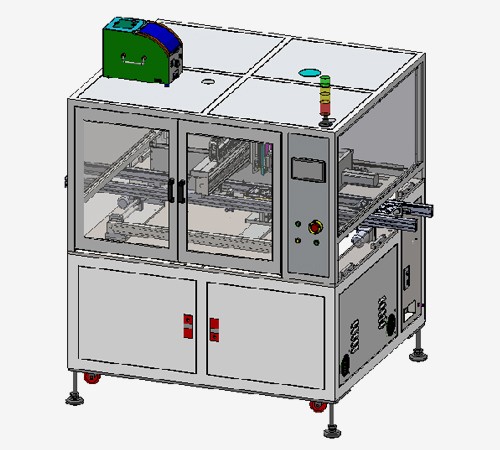

GSK AT-ZXC103 On-line Screw Locking Machine (M1-M5)

* Size: 1200x1500x1700mm(L*W*H)

* Lock range: 400x400mm (can be customized according to customer products)

* Transmission mode: precision servo motor/precision screw

* Screw extraction method: high pressure blow type

* Suitable screw: M1-M5

* Control system: PLC+ touch screen

* Positioning accuracy: soil 0.02mm

* Lock speed: 1-2 seconds /PCS (depending on screw length)

* Lock payment defective rate: ≤0.2%

* Lock torque: adjustable

* Function description: belt conveyor online synchronous lock payment/missing lock/floating lock/slip tooth judgment and alarm

* Hardware configuration: Electrical parts/screw/slide/module are all well-known brands

* Working air pressure: 0.5-0.7Mpa

* Power supply: AC220-240V, 10A

* Applicable products: PCB board, audio, camera, tablet computer, learning machine, small household appliances, LED modules, etc
