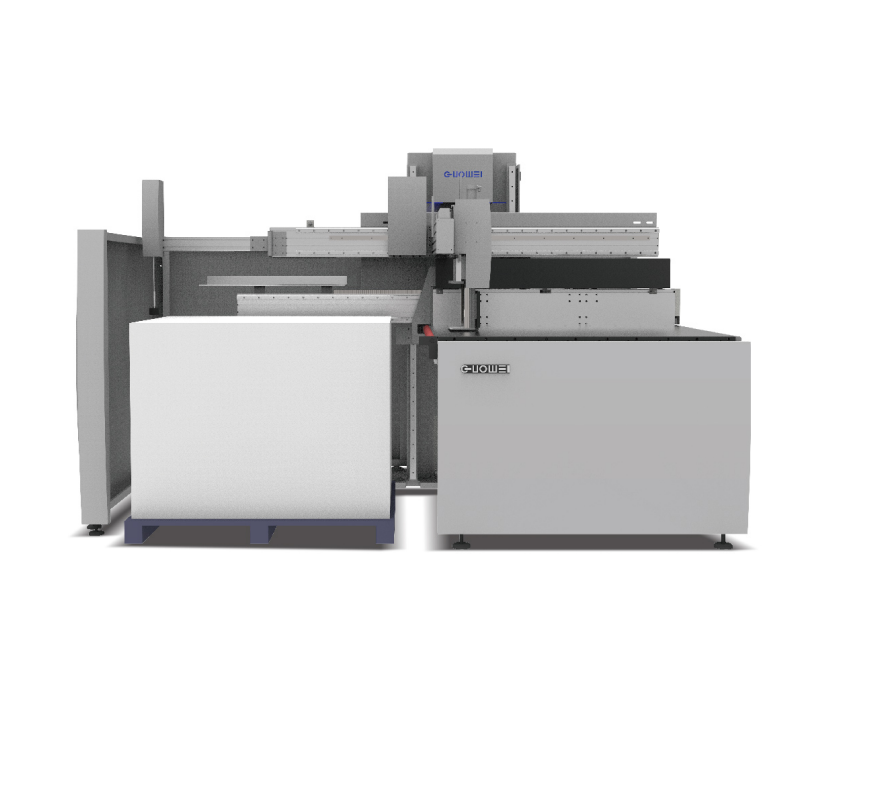

Guowei UD130 Full-automatic paper loading machine

A: 346 cm / 136.2"

F: 191 cm / 66.5"

L: 150 cm / 59"

D: 110 cm / 43.3"

Machine height: 226 cm / 89"

Max. height of paper pile: 140 cm / 55.1"

Max load: 200 kg

Power consumption (current): 8 A

Total power: 3 kW

Air pressure: 6–8 bar

Air consumption: 4 L/min

Overall dimension: 291 × 206 × 200 cm

Overall dimension (inch): 115" × 81.1" × 79"

Suitable paper cutter size: 130 / 115 / 137

Suitable paper cutter size (inch): 51.2" × 45.3" × 54"

Weight: 1200 kg

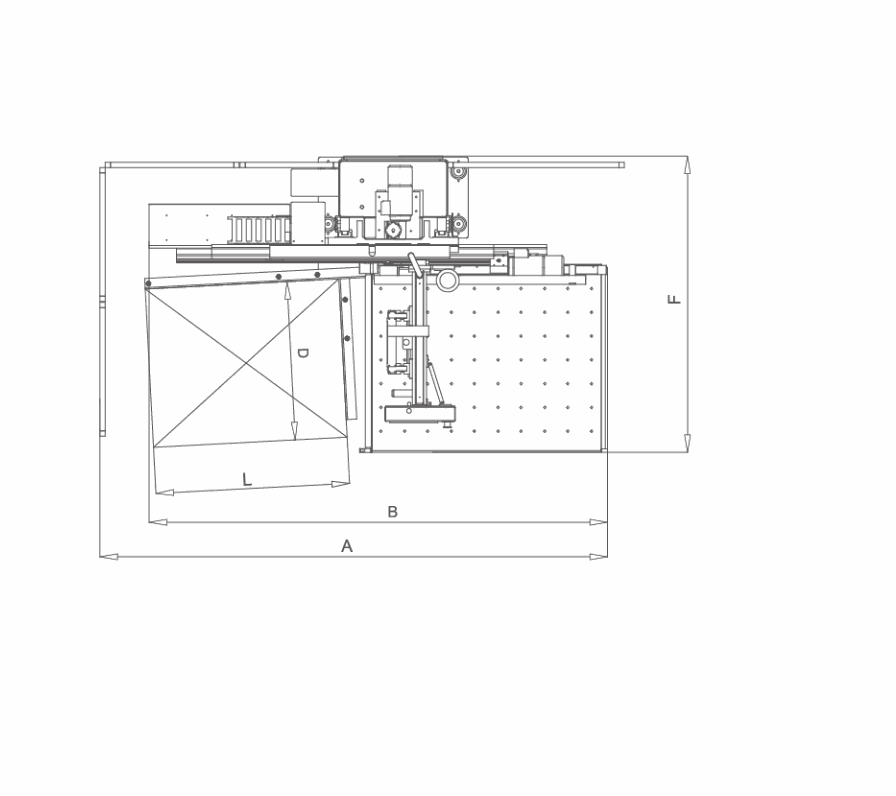

Dimensions
