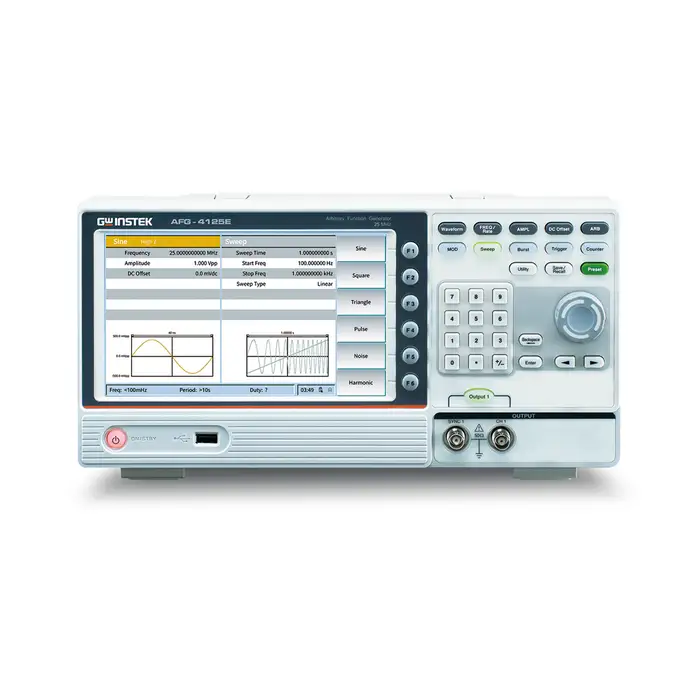

GW INSTEK AFG-4125E Arbitrary Function Generator (1CH; 25MHz; 125 MSa/s)

Number of Channels: 1

Display: 8-inch color LCD display

Touch Panel: No

Power Amplifier Function: Yes

Communication Interface: USB Host, USB Device

Waveforms: Sine, Square, Triangle, Ramp, Pulse, Noise, Harmonic wave, Arbitrary wave

Arbitrary Functions:

+ Sample Rate: 125 MSa/s

+ Repetition Rate (Arbitrary wave): 15 MHz

+ Waveform Length: 2 to 16K points

+ Amplitude Resolution: 14 bits

+ Minimum Rise and Fall Time: < 10 ns

+ Jitter: 8 ns

+ Non-Volatile Memory: 32 MB

Frequency Characteristics:

+ Sine: 25 MHz

+ Square: 5 MHz

+ Pulse: 5 MHz

+ Triangle, Ramp: 1 MHz

+ Noise (-3dB): 25 MHz BW

+ Harmonic Wave: 12.5 MHz

+ Resolution: 1 μHz or 10 digits

+ Accuracy Stability: ±2 ppm at 25°C±5°C

+ Aging: ±1 ppm, per 1 year

+ Tolerance: ±1 ppm
