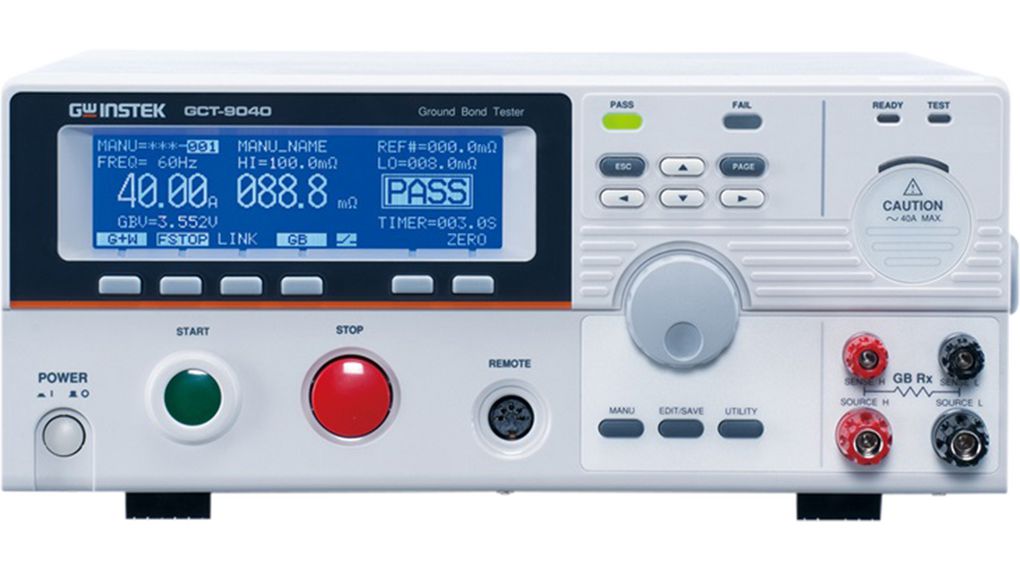

GWinstek GCT-9040 AC Ground Bond Tester

GROUND BOND

Output-Current 03.00A~ 40.00A ac

Output-Current Resolution 0.01A

Output-Current Accuracy 3A≦I≦8A :  (1% of setting + 0.2A)

8A< I≦40A :  (1% of setting + 0.05A)

Test-Voltage 8Vac max (open circuit)

Test-Voltage Frequency 50Hz/60Hz selectable

Resistance Measurement Range 1.0mΩ ~ 650.0mΩ

Resistance Measurement Resolution 0.1mΩ

Resistance Measurement Accuracy  (1% of reading + 2mΩ)

Window Comparator Method Yes

TIMER (Test Time) 0.5s~999.9s

GND OFF (fix)

Test Method Four Terminal

MEMORY

Single Step Memory MANU : 100 blocks

INTERFACE

LINK For system connection

USB Standard

GPIB Option

Remote Terminal (Front) Standard

Signal I/O Standard

Display 240 x 64 Ice Blue Dot matrix LCD

POWER SOURCE & COMSUMPTION

Source AC 100 V / 120 V / 220 V / 230 V ±10%, 50/60Hz

Comsumption Max. 700VA

DIMENSIONS & WEIGHT : 330(W) x 148(H) x 460(D) mm; Approx. 17kg max.

Accessories

Quick Start Guide x 1, Power cord x 1, Test lead GTL-215 x 1,

LINK cable GTL-132 x 1, USB cable GTL-247 x 1,

REMOTE terminal male plug x 1, Interlock key x 1,

CD x1(completed user manual)
