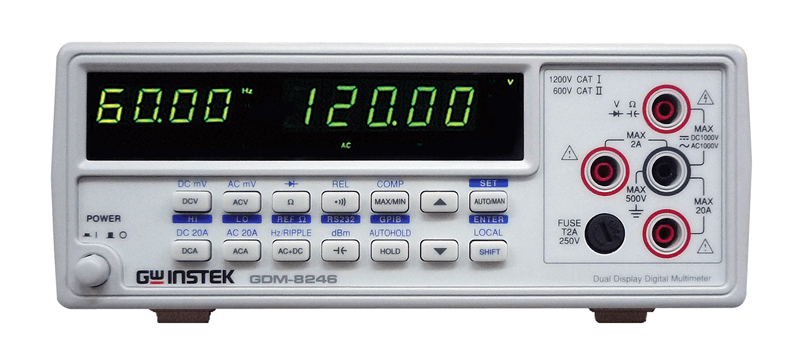

GDM-8246 50,000 Counts Dual Display, Programmable DMM with RS232C Interface

Name: GDM-8246 50,000 Counts Dual Display, Programmable DMM with RS232C Interface
Brand: GW INSTEK

ManufacturerGW INSTEK(View more products from this manufacturer)

ModelGDM-8246

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

DC VOLTAGE
Range	500mV, 5V, 50V, 500V, 1000V 5 ranges
Accuracy	+(0.02% rdg + 4 digits)
Input Impedance	10MΩ
AC VOLTAGE TRUE RMS
Range	500mV, 5V, 50V, 500V, 1000V 5 ranges
Accuracy	500mV ~ 1000V 5 ranges : 20Hz ~ 50Hz : +(1% rdg + 10 digits) 50Hz ~ 2kHz : +(0.3% rdg + 30 digits) 2kHz ~ 10kHz : +(0.4% rdg + 50 digits) 500mV ~ 500V 4 ranges : 10kHz ~ 20kHz : +(0.5% rdg+ 50 digits) 500mV ~ 50V 3 ranges : 20kHz ~ 50kHz : +(2% rdg + 20 digits) 50kHz ~ 100kHz : +(5% rdg + 50 digits)
Input Impedance	10MΩ
DC CURRENT
Range	500μA, 5mA, 50mA, 500mA, 2A, 20A 6 ranges
Accuracy	500μA ~ 500mA 4 ranges : +(0.05% rdg + 3 digits) 2A ~ 20A 2 ranges : +(0.2% rdg + 5 digits)
AC CURRENT TRUE RMS
Range	500μA, 5mA, 50mA, 500mA, 2A, 20A 6 ranges
Accuracy	500μA ~ 20A 6 ranges : 20Hz ~ 45Hz : +(1% rdg + 15 digits) 45Hz ~ 2kHz : +(0.5% rdg + 15 digits) 500μA ~ 500mA 4 ranges : 2kHz ~ 10kHz : +(1% rdg + 15 digits) 10kHz ~ 20kHz : +(2% rdg + 15 digits)
RESISTANCE
Range	500Ω, 5kΩ,50kΩ,500kΩ,5MΩ, 20Ω 6 ranges
Accuracy	500Ω : +(0.1% rdg + 4 digits) 5kΩ ~ 500kΩ 3 ranges : +(0.1% rdg + 2 digits) 5MΩ : +(0.2% rdg + 2 digits) 20MΩ : +(0.3% rdg + 2 digits)
DIODE TEST
	Maximum forward voltage 1.5V open voltage 3.1V
CAPACITANCE
Range	5nF, 50nF, 500nF, 5μF, 50μF 5 ranges
Accuracy	+(2% rdg + 4 digits)
FREQUENCY
Input Level (Sine Wave)	mV range : 10Hz ~ 50kHz >120mV 50k ~ 150kHz >200mV 5V~50V range : 20Hz ~ 200kHz >1.2V 500V range : 20Hz ~ 1kHz >12V
Accuracy	+(0.05% + 1 digit)
CONTINUITY BEEPER
	< 5Ω
FUNCTIONS
	Auto Range, Manual Range, Max, Min, dBm, REL, Hold, Compare, Set RECALL
DISPLAY
	Dual Display 0.4" , 0.5", 7 segment LED display
INTERFACE
	Standard : RS232C, Optional : GPIB
POWER SOURCE
	AC 100V/120V/220V/230V +10%, 50/60Hz
DIMENSIONS & WEIGHT
	251(W)x 91(H)x 291(D) mm Approx 2.6kg
