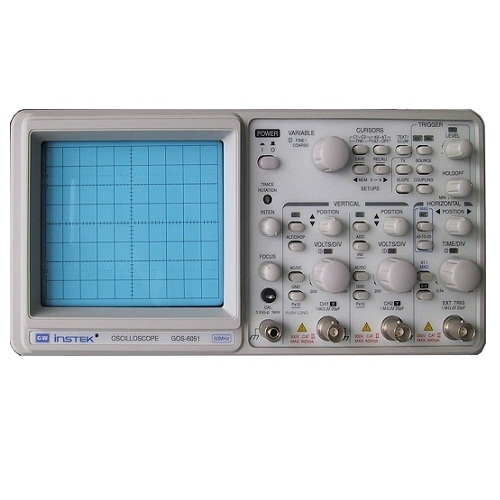

The screendisplaywith8x106inchsquares
Sensitivity and Accuracy : 1mV ~ 2mV/div ±5%, 5mV ~ 20V/div ±3%
Bandwidth: 50MHz
Input: AC, DC, GND, Max400V
Mode: CH1, CH2, DUAL, ADD,CH2INV
Power supply:AC100V/120V/220V/230V±10%, 50/60Hz
-
| CRT | |||||||||||||||||||||
| Type | 6-inch rectangular type with internal graticule; 0%, 10%, 90%, 100% markers. 8 x10 div(1div=1cm) | ||||||||||||||||||||
| Accelerating Potential | GOS-6051:approx.10kV; GOS-6031 : approx. 2kV | ||||||||||||||||||||
| Illumination | Provided (GOS-6051/6031) | ||||||||||||||||||||
| Trace Rotation | Provided | ||||||||||||||||||||
| Z-axis Input | Sensitivity : at least 5V ; Polarity : positive going input decrease ntensity Usable frequency range : DC to 2MHz ; Max. input voltage : 30V (DC + AC peak) at 1kHz or less Input Impedance:GOS-6051:approx.33kΩ ;GOS-6031:approx.47kΩ | ||||||||||||||||||||
| VERTICAL SYSTEM | |||||||||||||||||||||
| Sensitivity and Accuracy | 1mV ~ 2mV/div ±5%, 5mV ~ 20V/div ±3%, 14 calibrated steps in 1-2-5 sequence | ||||||||||||||||||||
| Vernier Vertical Sensitivity | Continuously variable to 1/2.5 or less of panel indicate value | ||||||||||||||||||||
| Bandwidth (-3dB) and Rise Time |
| ||||||||||||||||||||
| Maximum Input Voltage | 400V (DC + AC peak) at 1kHz or less | ||||||||||||||||||||
| Input Coupling | AC, DC, GND | ||||||||||||||||||||
| Input Impedance | 1MΩ ±2% / /approx. 25pF | ||||||||||||||||||||
| Vertical Modes | CH1, CH2, DUAL (CHOP, ALT), ADD, CH2 INV | ||||||||||||||||||||
| Chop Frequency | Approx. 250kHz | ||||||||||||||||||||
| Dynamic Range | GOS-6051:8 div at 40MHz, 6div at 50MHz; GOS-6031:8 div at 20MHz, 6div at 30MHz | ||||||||||||||||||||
| HORIZONTAL SYSTEM | |||||||||||||||||||||
| Sweep Time | 0.2μs ~ 0.5s/div, 20 steps selectable in 1-2-5 sequence, continuous variable control between steps at least 1 : 2.5 | ||||||||||||||||||||
| Accuracy | ±3%, ±5% at x5/ x10MAG, ±8% at x 20MAG | ||||||||||||||||||||
| Sweep Magnification | x5, x10, x20 MAG | ||||||||||||||||||||
| Maximum Sweep Time (at MAG) | GOS-6051 : 20ns/div (10ns/div are uncalibrated) GOS-6031 : 50ns/div (10ns/div ~ 40nS/div are uncalibrated) | ||||||||||||||||||||
| ALT-MAG Function | Available | ||||||||||||||||||||
| TRIGGER | |||||||||||||||||||||
| Trigger Mode | AUTO, NORM, TV | ||||||||||||||||||||
| Trigger Source | VERT-MODE, CH1, CH2, LINE, EXT | ||||||||||||||||||||
| Trigger Coupling | AC, HFR, LFR, TV-V(-), TV-H(-) | ||||||||||||||||||||
| Trigger Slope | “+”or“ - ”polarity | ||||||||||||||||||||
| Trigger Sensitivity |
TV sync pulse more than 1 div (CH1, CH2, VERT-MODE) or 200mV (EXT) | ||||||||||||||||||||
| External Trigger Input | Input impedance: Approx.1MΩ//25pF(AC coupling); Max. input voltage: 400V(DC+AC peak)at 1kHz | ||||||||||||||||||||
| Hold-off Time | Variable | ||||||||||||||||||||
| X-Y OPERATION | |||||||||||||||||||||
| Input | X-axis: CH1 ; Y-axis: CH2 | ||||||||||||||||||||
| Sensitivity | 1mV ~ 20V/div | ||||||||||||||||||||
| Bandwidth | X-axis: DC ~ 500kHz (-3dB) | ||||||||||||||||||||
| Phase Difference | 3°or less from DC to 50kHz | ||||||||||||||||||||
| OUTPUT SIGNAL | |||||||||||||||||||||
| CH1 Signal Output | Voltage : approx. 20mV/div (with 50Ω terminated) Bandwidth : 50Hz to at least 5MHz | ||||||||||||||||||||
| Calibrator Output | Voltage : 0.5V ±3% Frequency : approx. 1kHz, square wave | ||||||||||||||||||||
| CRT READOUT | |||||||||||||||||||||
| Panel Setting Display | CH1/CH2 sensitivity, sweep time, trigger condition | ||||||||||||||||||||
| Panel Setting Save & Recall | 10 sets | ||||||||||||||||||||
| Cursor Measurement | Cursor measurement function : ΔV, ΔT, 1/ΔT Cursor resolution : 1/25 div ; Effective cursor range : vertical : ±3 div ; Horizontal : ±4 div Display digits : Max. 6-digits decimal | ||||||||||||||||||||
| Frequency Counter | Frequency range :GOS-6051 : 50Hz ~ 50MHz; GOS-6031 : 50Hz ~ 30MHz Accuracy : ±0.01% Measuring sensitivity : more than 2 div (measuring source selected from CH1 or CH2 as synchronous signal sources) | ||||||||||||||||||||
| POWER SOURCE | |||||||||||||||||||||
| AC 100V/ 120V/ 230V ±10%, 50Hz/ 60Hz | |||||||||||||||||||||
| DIMENSIONS & WEIGHT | |||||||||||||||||||||
| 275(W) x 130(H) x 370(D) mm; Approx. 7.2kg | |||||||||||||||||||||
