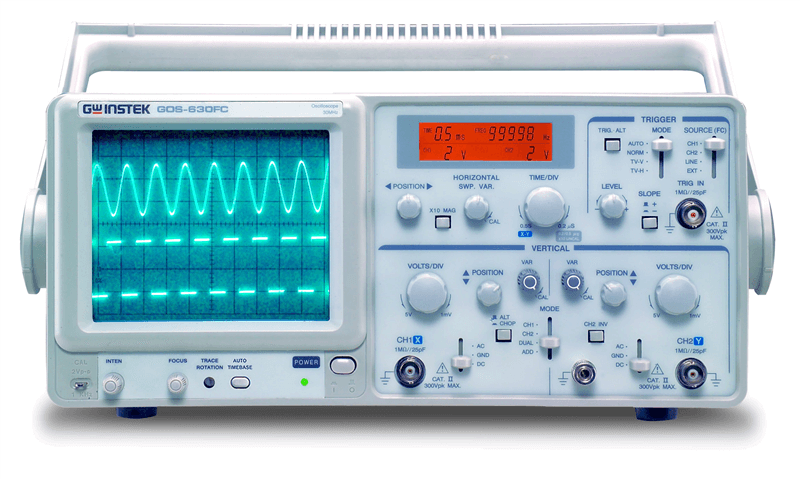

VERTICAL SYSTEM | |
| Sensitivity | 1mV ～ 5V/div , 12 steps in 1-2-5 sequence |
| Accuracy | ≦3%, (1mV/div, 2mV/div: 5%) |
| Vernier Vertical Sensitivity | ≦1/2.5 of panel-indicated value |
| Bandwidth | DC～30MHz (1mV/div, 2mV/div: DC～7MHz) |
| Rise Time | Approx. 11.7ns (1mV/div, 2mV/div: Approx. 50ns) |
| Input Impedance | Approx. 1MΩ // 25pF |
| Square Wave Characteristics | Overshoot : 5% ( At 10mV/div range) |
| Linearity | <±0.1div of amplitude change |
| Vertical Modes | CH1, CH2, DUAL (ALT/CHOP), ADD |
| Chopping Repetition Frequency | Approx. 250kHz |
| Input Coupling | AC, DC, GND |
| Maximum Input Voltage | CAT II 300V(DC+ACpeak) |
| Common Mode Rejection Ratio | 50:1 or better at 50kHz sinusoidal wave |
| Isolation Between Channels | >1000:1at 50kHz, >30:1at 30MHz(at 5mv/div Range) |
| CH1 Signal Output | At least 20 mV/div at 50Ω terminal, frequency at least 50Hz to 5MHz |
TRIGGERING | |
| Triggering Source | CH1, CH2, ALT, LINE, EXT |
| Coupling | AC : 20Hz to full bandwidth |
| Slope | + / - |
| Sensitivity | 20Hz ~ 2MHz: 0.5div, TRIG-ALT: 2div, EXT: 200mV 2MHz ~ 30MHz: 1.5div, TRIG-ALT: 3div, EXT: 800mV TV: Sync pulse more than 1 div (EXT: 1V) |
| Triggering Modes | AUTO , NORM , TV-V , TV-H |
EXT TRIGGERING SIGNAL INPUT | |
| Input Impedance | Approx. 1MΩ // 25pF |
| Maximum Input Voltage | CAT II 300V(DC+AC peak) |
HORIZIONAL SYSTEM | |
| Sweep Time | 0.2μs ~ 0.5s/div, 20 steps in 1-2-5 sequence |
| Sweep Time Accuracy | ±3% |
| Vernier Sweep Time Control | ≦ 1/2.5 of panel-indicated value |
| Sweep Magnification | 10 times |
| ×10MAG Sweep Time Accuracy | ±5% (20ns ~ 50ns/div are uncalibrated) |
| Linearity | ±3%, ×10MAG:±5% (20ns/div and 50ns/div are uncalibrated) |
| X-Y MODE | |
| Sensitivity | Same as vertical axis |
| Bandwidth | DC to at least 500kHz |
| X-Y Phase Difference | ≦3° at DC ～50kHz |
| Z AXIS | |
| Sensitivity | 5 Vpp (Positive-going signal decreases intensity) |
| Bandwidth | DC ～ 2MHz |
| Input Resistance | Approx. 47kΩ |
| Maximum Input Voltage | CAI II 30V(DC+AC peak) |
| CALIBRATION VOLTAGE | |
| Waveform | Positive-going Square wave |
| Frequency | Approx. 1 kHz |
| Duty Ratio | Within 48:52 |
| Output Voltage | 2Vpp ±2% |
| Output Impedance | Approx. 1 kΩ |
| FREQUENCY COUNTER | |
| Display Digits | Max. 5-digits decimal |
| Frequency Range | 50Hz ~ 30MHz |
| Accuracy | ±0.05%: 50Hz ~ 1kHz, ±0.02%: 1kHz ~ 30MHz |
| Measuring Sensitivity | > 2div |
LCD | |
| Display | VOLT/div, TIME/div, X-Y Mode, Frequency |
| Backlight | Orange |
CRT | |
| Type | 6-inch rectangular type, internal graticule |
| Phosphor & Acceleration Voltage | P 31 & Approx. 2kV |
| Effective Screen Size | 8 × 10 div (1 div = 10mm (0.39in)) |
| Graticule | Internal |
| Trace Rotation | Provided |
| POWER SOURCE | |
| Line Voltage | AC 115V, 230V ±15% selectable, 50Hz/ 60Hz |
STORAGE ENVIRONMENT | |
| Temperature | -10℃ to 70℃ |
| Humidity | 70%RH (Max.) |
| DIMENSIONS & WEIGHT | |
| 310(W) x 150(H) x 455(D) mm; Approx. 8.2kg | |
Warranty: 12months
Manufacturer:Gwinstek- Taiwan
Origin: China
|
