| DC OUTPUT | ||
Output Volts (V) | Output Amps (A) | |

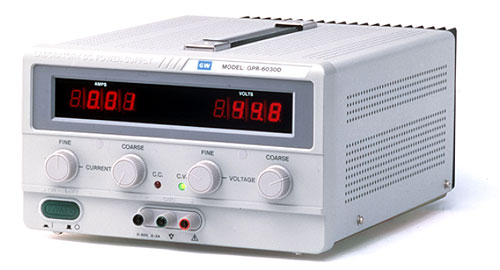

GPR-6030D | 0 ~ 60 | 0 ~ 3 |
| CONSTANT VOLTAGE OPERATION | ||
| Regulation | Line regulation < 0.01% + 3mV Load regulation <0.01% + 5mV (<10A) Load regulation < 0.02% + 5mV (>10A) | |
| Ripple & Noise | < 1mVrms (5Hz ~ 1MHz) | |
| Recovery Time | < 100μS ( 50% load change, minimum load 0.5A ) | |
| Output range | 0 to rating voltage continuously adjustable | |
| CONSTANT CURRENT OPERATION | ||
| Regulation | Line regulation < 0.2% + 3mA Load regulation <0.2% + 3mA | |
| Ripple Current | < 3mArms | |
| Output Range | 0 to rating current continuously adjustable | |
| METER | ||
| Type | 3 1/2 Digits 0.5" LED Display | |
| Accuracy | ±( 0.5% of rdg + 2 digits ) | |
| INSULATION | ||
| Chassis and Terminal | 20MΩ or above (DC 500V) | |
| Chassis and AC Cord | 30MΩ or above (DC 500V) | |
| POWER SOURCE | ||
| AC 100V/120V/220V/240V±10%, 50/60Hz | ||
| ACCESSORIES | ||
| User manual x 1 Power cord x 1 Test Lead GTL-104 x 1 | ||
| DIMENSIONS & WEIGHT | ||
| 255(W) x 145(H) x 335(D)mm Approx. 11.5kg | ||
