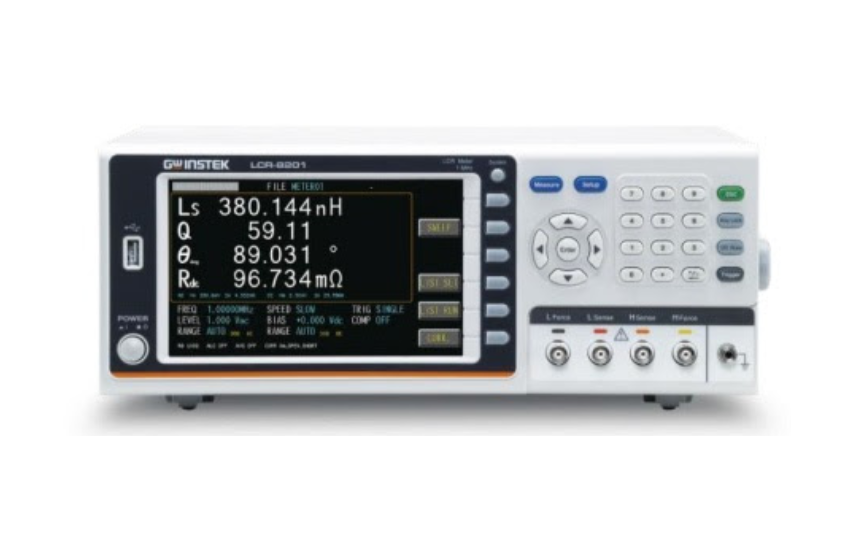

GW INSTEK LCR-8201 LCR Meter (10Hz ~ 1MHz, ±0.08%)

Test Frequency: DC, 10Hz ~ 1MHz; 6 digits, ±0.007%

Output Impedance: 25Ω / 100Ω

Basic Accuracy: ±0.08%

Test Speed: MAX 2.5ms (>10kHz), FAST: 50ms (>20Hz), MEDIUM: 100ms, SLOW: 300ms, SLOW2: 600ms

Test Signal:

- AC Voltage: 10mV ~ 2Vrms (FREQ. ≦ 1MHz, RO=100Ω), 10mV ~ 1Vrms (FREQ. ≦ 1MHz and RO=25Ω)

- AC Current: 100μA ~ 20mArms (RO=100Ω), 400μA ~ 40mArms (RO=25Ω)

- DCR Voltage: 1Vdc (40mA max.)

Measurement Parameters: (Z), (Y), C, L, X, B, R, Q, D, G, θ, Rdc

List Measurement

Listed Steps: 15

Listed Parameters: Freq/Vac/Iac/DC Bias/Comp/BIN

Trigger: AUTO, REPEAT, SINGLE

Sweep Measurement

Swept Graphical: Two of measurement parameters

Swept Parameters: Freq/Vac/Iac, Keep Trace

Display: 7" LCD color display (800x480)

Interface: GPIB/LAN/RS-232/ USB Host & device Handler

Power Source: AC 100V~240V, 50/60Hz; Consumption: 65VA (max.)

Dimensions & Weight: 346 (W) X 145 (H) X 335 (D) mm; Approx. 3.3kg
