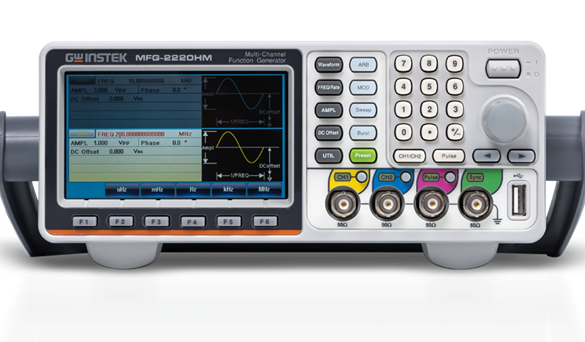

Waveform: Sine, square, triangle, pulse, ramp, ARB
- Arbitrary function:
Sampling Rate: 500MSa / s
Repetition rate: 125MHz
Wave length: 16k points
Amplitude resolution: 14 bits
Jitter (Period to Period): 500ps
Minimum rise / fall time: 6ns
Non-volatile memory: 64
- Frequency characteristics:
Sine wave: 200MHz
Square wave: 60MHz
Triangle wave: 5MHz
Resolution: 1uHz
Accuracy: ± 20 ppm
Aging rate: ± 3 ppm per year
- Output characteristics amplitude:
range:
1 mVpp ~ 10 Vpp ≤20MHz
1 mVpp ~ 5 Vpp ≤70MHz
1 mVpp ~ 2Vpp ≤120MHz
1 mVpp ~ 1 Vpp ≤200MHz
Accuracy: ± 1% of set value ± 1 mVpp
Resolution: 0.1 mV or 4 digits
unit: Vpp, Vrms, dBm
flatness:
± 0.1 dB ≤10MHz
± 0.2 dB ≤60MHz
± 1 dB ≤100MHz
± 1.5 dB ≤160MHz
± 3 dB ≤200MHz
-bias:
range:
± 5 Vpk ac + dc
± 10Vpk ac + dc (open circuit)
Accuracy: 1% of set value + 5 mV + 0.5% amplitude ( with 50Ω load )
- Sine wave characteristics:
Harmonic distortion:
–60 dBc DC ～200KHz, Ampl ＞0.1 Vpp –55 dBc 200KHz ～1 MHz, Ampl ＞0.1 Vpp –45 dBc 1MHz ～10 MHz, Ampl ＞0.1 Vpp
–35 dBc 10MHz ～30 MHz, Ampl ＞0.1 Vpp –30dBc 30MHz ～200 MHz, Ampl ＞0.1 Vpp
Non-harmonic spurs:
Typical value (0dBmt)
<10MHz: ≤ -65dBc> 10MHz: ≤ -65dBc + 6dB / octave
Phase noise:
Typical value (0dBm, 10KHz offset)
10MHz: ≤ -115dBc / Hz
THD: <0.1% (10Hz-100KHz), Ampl ＞0.1 Vpp
- Square wave characteristics:
Rise / fall time: ≤ 6ns maximum output out.
Extreme: <5%
Asymmetry: 1% period +5 ns
Adjustable duty cycle: ≤50MHz 0.01% ~ 99.99%, (limited by the current frequency setting)
Jitter (rms): 500pS
- Pulse characteristics:
Rise / fall time: ≥6ns
cycle: 25ns to 1000000s
Pulse Width: ≥10ns
Extreme: <5%
Jitter (rms): ≤5MHz: 2ppm + 500ps; > 5MHz: 500ps
- Ramp wave characteristics:
Linearity: ＜ 0.1% peak output
symmetry: 0% ~ 100% (0.1% resolution)
- AM modulation:
Carrier waveform: Sine, square, triangle, pulse, ramp, ARB
Modulation waveform: Sine, square, triangle, up / down ramp
Modulation frequency: 2 mHz ~ 50KHz (Int); DC ~ 50KHz (Ext)
depth: 0% ~ 120.0%
Signal source: Inside / outside
- FM modulation:
Carrier waveform: Sine, square, triangle, ramp
Modulation waveform: Sine, square, triangle, up / down ramp
Modulation frequency: 2 mHz ~ 50KHz (Int); DC ~ 50KHz (Ext)
Frequency offset: DC ~ 0.5 * Max frequency
Signal source: Inside / outside
- PM modulation:
Carrier waveform: Sine, square, triangle, ramp
Modulation waveform: Sine, square, triangle, up / down ramp
Modulation frequency: 2 mHz ~ 50KHz (Int); DC ~ 50KHz (Ext)
Phase shift: 0 ° ~ 360 °
Signal source: Inside / outside
- PWM modulation:
Carrier waveform: Pulse wave
Modulation waveform: Sine, square, triangle, up / down ramp
Modulation frequency: 2 mHz ~ 50KHz (Int); DC ~ 50KHz (Ext)
Width and depth: 0% ~ 100.0%
Signal source: Inside / outside
- SUM modulation:
Carrier waveform: Sine, square, triangle, pulse, ramp, noise
Modulation waveform: Sine, square, triangle, up / down ramp
Modulation frequency: 2 mHz ~ 50KHz (Int); DC ~ 50KHz (Ext)
Width and depth: 0% ~ 100.0%
Signal source: Inside / outside
- SWEEP:
Waveform: Sine, square, triangle, ramp
Types of: Linear or logarithmic
Start / stop frequency: 1uHz ~ maximum frequency
Scan time: 1 ms ~ 500 s
Scanning direction: Up or down
Signal source: Internal / External / Manual
- BURST:
Waveform: Sine, square, triangle, ramp, ARB
frequency: 1uHz ~ 100MHz
Pulse counting: 1 ~ 1000000 loop or infinite, gated
Start / stop phase0 ° ~ + 360.0 °
Internal cycle: 1 ms ~ 500 s
Gated Source: External trigger
Trigger source: Word, outside, inside
Trigger Delay (N-Cycle, Infinite): 0 ns ~ 100s
- FSK:
Carrier waveform: Sine, square, triangle, pulse, ramp
Modulation waveform: 50% square wave duty cycle
Internal frequency: 2 mHz to 1 MHz
FM range: 1uHz ~ maximum frequency
Signal source: Inside / outside
- ASK:
Carrier waveform: Sine, square, triangle, pulse, ramp
Modulation waveform: 50% square wave duty cycle
Internal frequency: 2 mHz ~ 1 MHz
Amplitude range: 1mVpp ~ 10Vpp
Signal source: Inside / outside
- PSK:
Carrier waveform: Sine, square, triangle, pulse, ramp
Modulation waveform: 50% square wave duty cycle
Internal frequency: 2 mHz to 1 MHz
Phase range: 0 ° ~ 360 °
Signal source: Inside / outside
Frequency counter:
range: 5Hz ~ 150MHz
Resolution: 8 bits / s
Sensitivity: 35mVrms-30Vrms (5Hz ~ 150MHz)
- Reference output:
The output voltage: 3.3 Vp-p square wave
Output impedance: 50Ω, AC coupling
Output frequency: 26.8436MHz
- Reference input:
Input voltage: 0.5Vp-p ~ 5Vp-p
input resistance: 1kΩ, unbalanced, AC coupled
Input frequency: 26.8436MHz ± 10Hz
Waveform: Sine or square wave (50 ± 5% duty)
- External modulation input:
Types of: AM, FM, PM, PWM, SUM
voltage range: ± 5V full scale
input resistance: 10kΩ
frequency: DC-50kHz
- External trigger input:
Types of: FSK, Burst, Scan
Input level: TTL compatible
Slope: Rise or fall (optional)
Pulse Width: > 100ns
Input frequency: DC-1MHz
- Trigger output:
Types of: Burst, scan
Input level: TTL compatible
slope: Rise or fall (optional)
Pulse Width: > 100ns
Pulse generator: Y
Save / recall: 10 sets of setting memory
interface: USB Devies, LAN, USB HOST
display: 4.3 TFT
- General specifications:
power supply: AC100 ～240V, 50 ～60Hz
Power consumption: 35W
Operating environment: Compliant temperature : 18 ~ 28 ∘ C
Operating temperature : 0 ~ 40 ∘ C
Relative humidity : ≤ 80%, 0 ~ 40 ° C; ≤ 70%, 35 ~ 40 ° C
Installation category : CAT Ⅱ
Working height: 2000 meters
storage temperature: -10 ~ 70 ∘ C, humidity : ≤ 70%
Size (WxHxD): 266 (W) × 107 (H) × 293 (D) mm
weight: About 2.5 kg
