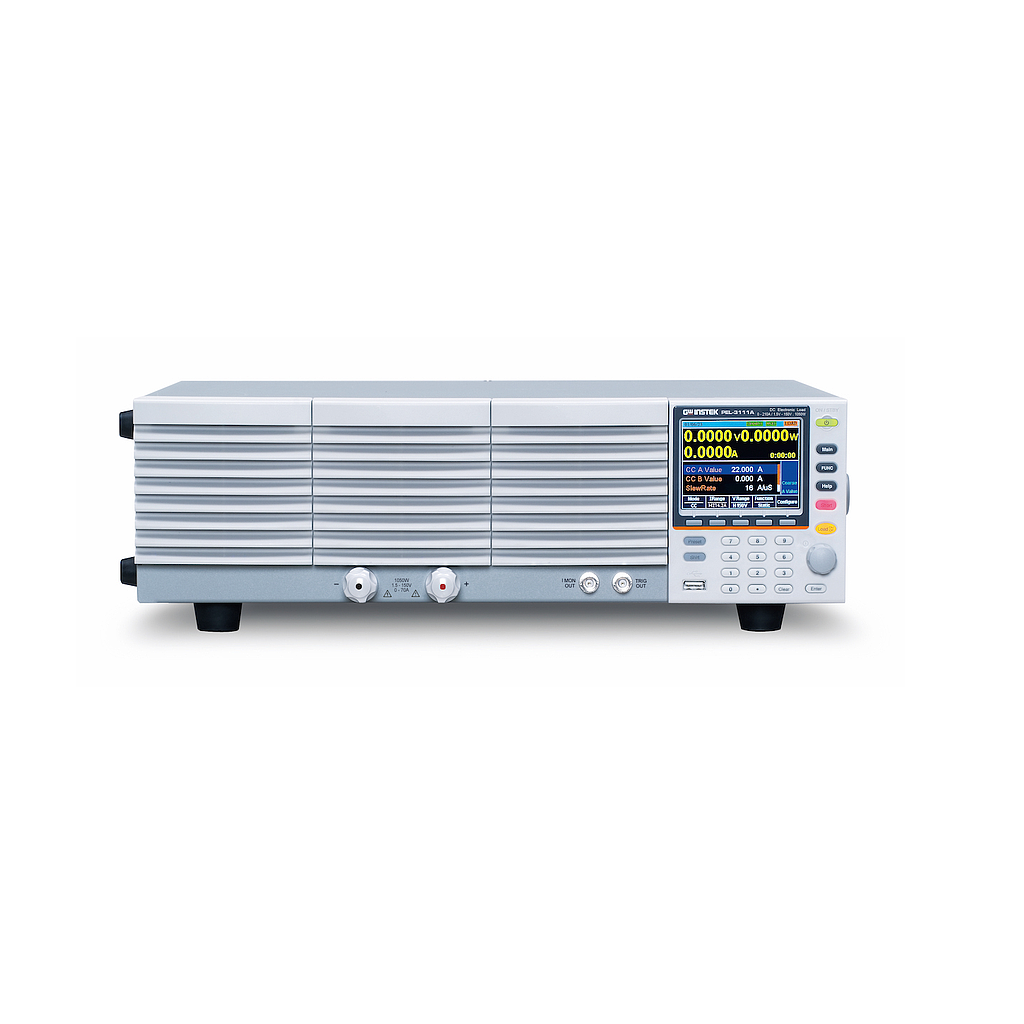

GW INSTEK PEL-3111A Programmable DC Electronic Load (150 V/ 210 A/ 1050 W)

Voltage: 0 V to 150 V

Current: 210 A

Power: 1050 W

Input Resistance: 500 kΩ

Min. Operating:

0.75 V at 105 A

1.5 V at 210A

CONSTANT CURRENT MODE (CC)

Operating Range (H, M, L): 0 A~ 210 A,  0 A ~ 21 A, 0 A ~ 2.1 A

Accuracy of Setting (H, M): ±(0.2 % of set + 0.1 % of F.S.) + Vin/500 kΩ

Accuracy of Setting (L): ±(0.2 % of set + 0.1 % of F.S.) + Vin/500 kΩ

Accuracy of Setting(Parallel): ±(1.2% of set + 1.1% of F.S)

Resolution (H, M, L): 10 mA ,1 mA, 0.1 mA

CONSTANT RESISTANCE MODE (CR)

Operating Range

Range (H):

140.0016 S to 2.4 mS

(7.1427 mΩ to 416.6667 Ω)

Range (M):

14.0001 S to 242.4 μS

(71.427 mΩ to 4.16667 kΩ)

Range (L):

1.40001 S to 24.24 μS

(714.27 mΩ to 41.6667 kΩ)

Accuracy of Setting (H, M): ±(0.5 % of set + 0.5 % of F.S.) + Vin/500 kΩ

Accuracy of Setting (L):  ±(0.5 % of set + 0.5 % of F.S.) + Vin/500 kΩ

Parallel: ±(1.2 % of set + 1.1 % of F.S)

CONSTANT VOLTAGE MODE (CV)

Operating Range

Range (H): 1.5 V to 150 V

Range (L): 1.5 V to 15 V

CONSTANT POWER MODE (CP)

Operating Range

Range (H): 105 W to 1050 W

Range (M):10.5 W to 105 W

Range (L): 1.05 W to 10.5 W

GENERAL

Input Range:90 Vac to 132 Vac/180 Vac to 250 Vac Single-phase; 47 Hz to 63 Hz

Power(Max.):190 VA

Interface: Standard：USB, RS-232/RS-485, LAN. Optional：GPIB

Dimensions (W x H x D): 427.8 mm x 124 mm x 400.5 mm

Weight: Approximate 17 kg
