Manufacturer: GW-INSTEK

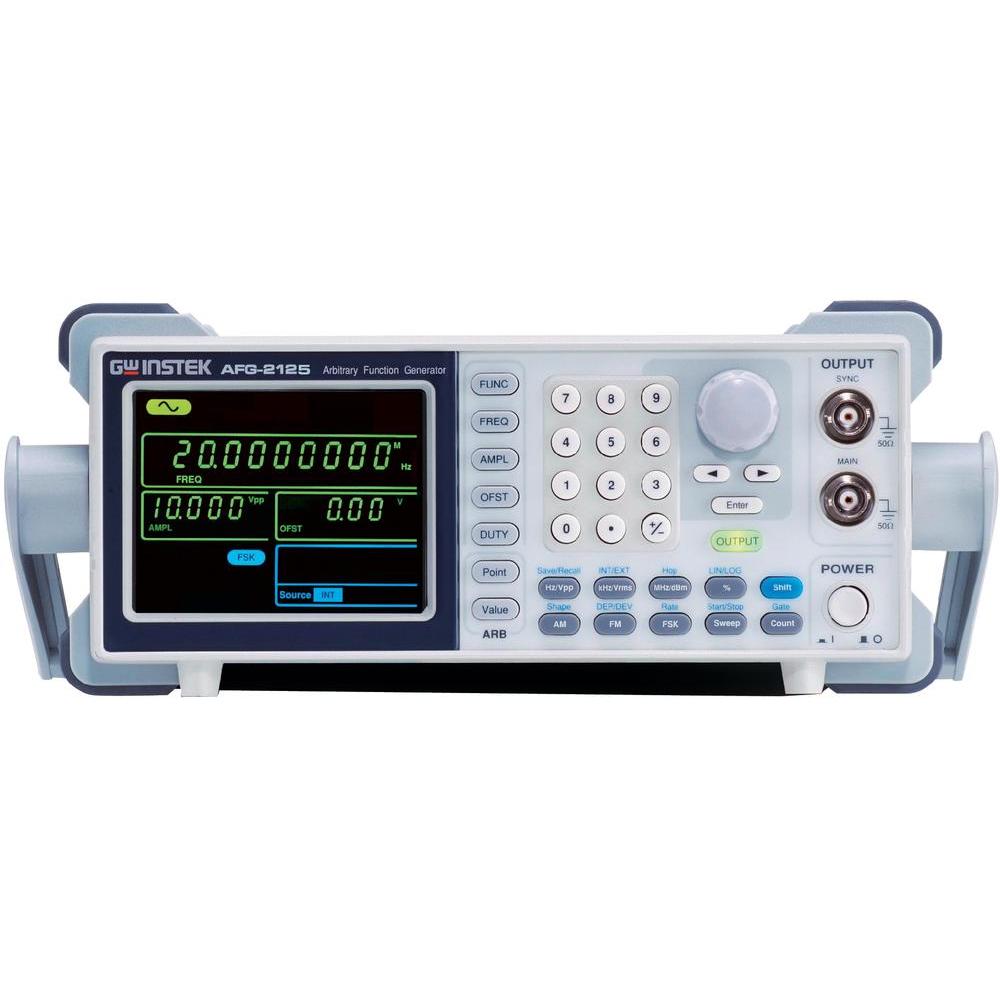

Model: AFG-2125
Dimensions: 266(W)×107(H)×293(D) mm
Weight: 2.5 kg
Accessories: User manual CD, Quick Start Guide, Power cord, test lead x 2
Warranty: 12 months
Waveforms: Sine, Square, Ramp, Noise, Arbitrary Waveform
- Arbitrary Waveform
Sample Rate:20 MSa/s
Waveform Length: 4k points
Amplitude Resolution: 10 bit
Non-Volatile Memory: 4k points
- Frequency Characteristics
Sine, Square:0.1Hz-25MHz
Ramp:0.1Hz ~ 1MHz
Resolution: 0.1Hz
Accuracy Stability: ±20 ppm
Aging: ±1 ppm, per 1 year
Tolerance: ≦ 1 mHz
-Output Characteristics
Amplitude: 1 mVpp to 10 Vpp( into 50Ω), 0.1Hz～20MHz; ± 2%; 1 mV
Flatness
± 1% (0.1dB) ≦100kHz
± 3% (0.3 dB) ≦5MHz
± 4% (0.4 dB) ≦12MHz
± 20% (2 dB) ≦20MHz
± 5% (0.4 dB) ≦25MHz
- Offset: ±5 Vpk ac +dc (into 50Ω); 2%
- Output Impedance: 50Ω typical (fixed) > 300kΩ (output disabled)
- Sine wave Characteristics
Harmonic Distortion
–55 dBc DC ~ 200kHz, Ampl > 0.1Vpp
–50 dBc 200kHz ~ 1MHz, Ampl > 0.1Vpp
–35 dBc 1MHz ~ 5MHz, Ampl > 0.1Vpp
–30 dBc 5MHz ~ 25MHz, Ampl > 0.1Vpp
- Square wave Characteristics
Rise/Fall Time: ≦25ns at maximum output (into 50Ωload)
Overshoot: < 5%
Asymmetry: 1% of period+1 ns
Variable Duty Cycle
1.0% to 99.0% ≦ 100kHz
20.0% to 80.0% ≦ 5 MHz
40.0% to 60.0% ≦ 10MHz
50% ≦ 25MHz
- Ramp Characteristics
Linearity: ＜ 0.1% of peak output
Variable Symmetry: 0% to 100%(0.1% Resolution)
- AM Modulation
Carrier Waveforms: Sine, Square, Triangle
Modulating Waveforms: Sine, Square, Triangle
Modulating Frequency: 2 mHz to 20 kHz (Int) , DC to 20KHz (Ext)
Depth: 0% to 120.0%
Source: Internal / External
- FM Modulation
Carrier Waveforms: Sine, Square, Triangle
Modulating Waveforms: Sine, Square, Triangle
Modulating Frequency: 2 mHz to 20 kHz (Int); DC to 20KHz (Ext)
Deviation: DC to Max Frequency
Source: Internal / External
- SWEEP
Waveforms: Sine, Square, Triangle
Type: Linear or Logarithmic
Start F / Stop F: 0.1Hz to Max Frequency
Sweep Time: 1 ms to 500 s
Source: Internal / External
- FSK
Carrier Waveforms: Sine, Square, Triangle
Modulating Waveforms: 50% duty cycle square
Modulation Rate: 2mHz to 100kHz(INT); DC to 100kHz(Ext)
Frequency Range: 0.1Hz to Max Frequency
Source: Internal / External
- Frequency Counter
Range: 5Hz to 150MHz
Accuracy: Time Base accuracy±1count
Time base: ±20ppm (23℃ ± 5℃) after 30 minutes warm up
Resolution: 100nHz for 1Hz, ; 0.1Hz for 100MHz.
Input Impedance: 1kΩ/1pf
Sensitivity: 35mVrms ~ 30Vms (5Hz to 150MHz)
-System Characteristics
Store/Recall: 10 Groups of Setting Memories
Interface: USB(Device)
Display: LCD 3.5 inch
- General Specifications
Power Source: AC100～240V , 50～60Hz
Power Consumption: 25 VA
Operating Environment
Temperature to satisfy the specification : 18 ~ 28∘C
Operating temperature : 0 ~ 40∘C
Relative Humidity: ≤ 80%, 0 ~ 40°C
Accessories
CD (user manual + software) ×1 , Quick Start Guide x1, Power cord×1; GTL-101× 2
