Warranty: 12 months

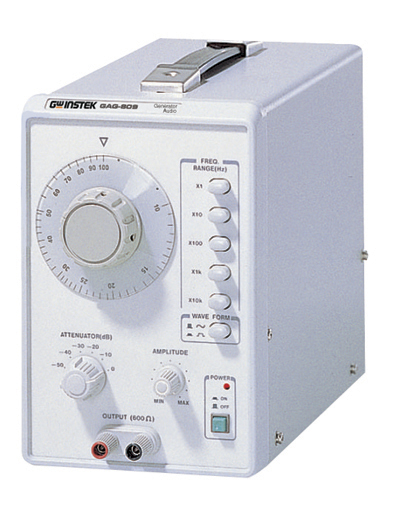

Manufacturer:Gwinstek- Taiwan
Origin: China
| SINE WAVE CHARACTERISTIC | |
| Frequency Range | 10Hz ~ 1MHz, 5 Ranges |
| Frequency Indicator | Dial Scale |
| Frequency Accuracy | ±3% + 1Hz (at x10, x100) |
| Output Voltage | 5 Vrms (600Ω load) |
| Frequency Response | 10Hz ~ 1MHz ± 0.5dB(at 600Ω load) Reference Frequency (1kHz) |
| Distortion Factor | 500Hz ~ 20kHz: ≦0.1% 100Hz ~ 100kHz: ≦0.3% (x 10 range for 100Hz, x 1k range for 100kHz) 50Hz ~ 200kHz: ≦0.3% 20Hz ~ 500kHz: ≦0.5% 10Hz ~ 1MHz: ≦1.5% |
| SQUARE WAVE | |
| Output Voltage | ≧10Vp-p (no load) |
| Overshoot | ≦2% (at 1kHz, max output) |
| Rise & Fall Time | <200nS |
| Duty Ratio | 50%±5% |
| EXT. SYNCHROKhNIZATION | |
| Synchronizing Range | ±1%/Vrms |
| Max. Allowable Input | 15V (DC + AC peak) |
| Input Impedance | 150kΩ |
| OUTPUT | |
| Output Impedance | 600Ω |
| Output Attenuator | 0, -10, -20, -30, -40, -50dB 6 ranges (accuracy±1dB at 600Ω load) |
| POWER SOURCE | |
| AC 100/120/220/230V±10%, 50/60Hz | |
| DIMENSIONS & WEIGHT | |
| 130(W) x 210(H)x292(D)mm Approx 3 kg | |
