Manufacturer: GW-INSTEK

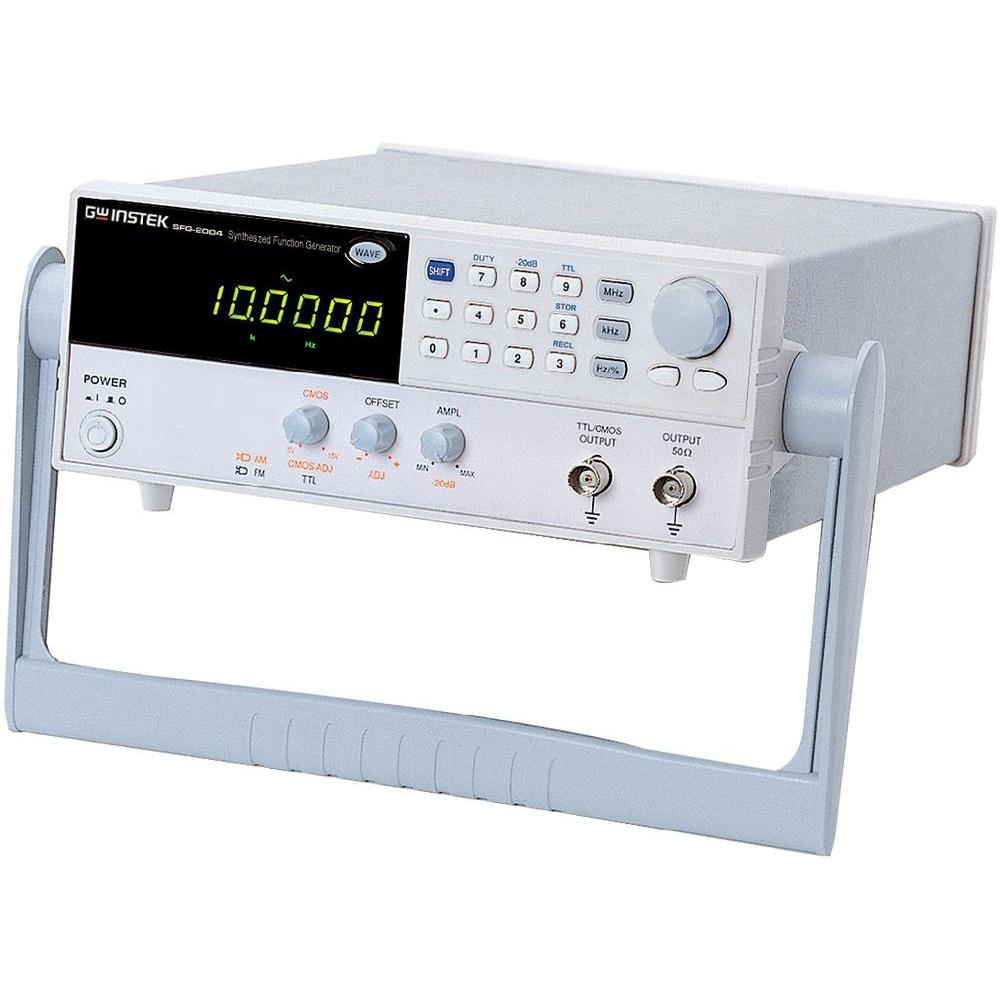

Model: SFG-2010
Dimensions: 266(W)×107(H)×293(D) mm
Weight: 3.2 kg
Accessories: User Manual×1; Power Cord x 1; GTL-101 x 1(SFG-2000 Series); GTL-101× 2 (SFG-2110)
STORE/RECALL FUNCTION: 10 groups of panel settings
POWER SOURCE: AC115V±10%, AC 230V+10%/-15%, 50/60Hz
Warranty: 12 months
- Main
Frequency Range
Sine, Square: SFG-2004 : 0.1Hz ~ 4MHz
Triangle: 0.1Hz~1MHz
Frequency Resolution0.1Hz
Frequency Stability± 20 ppm
Frequency Accuracy± 20 ppm
Aging± 5 ppm /year
Output FunctionSine, Square, Triangle
Amplitude Range2mV~10Vpp(50Ω Load)
Impedance50Ω±10％
Attenuator-20dB±1dB×2
DC Offset＜-5V～＞+5V(50Ω Load)
Duty Cycle20% to 80%, 2Hz~1MHz (Only Square)
Range Resolution1%
Display9 位 LED display
- SINE WAVE
Harmonics Distortion-55dBc,0.1Hz～200kHz; -40dBc,0.2MHz～4MHz; -30dBc,4MHz～10MHz
Flatness(Relative to 1kHz)＜± 0.3dB,0.1Hz～1MHz; ＜± 0.5dB,1MHz～4MHz; ＜± 2dB, 4MHz～10MHz
- TRIANGLE WAVE
Linearity≧98％,0.1Hz～100kHz;≧95％,100kHz～1MHz
- SQUARE WAVE
Symmetry± 1% of period +4ns to 0.1Hz～100kHz
Rise or Fall Time≦25ns at maximum output.(into 50 load)
- CMOS Output
Level4Vpp±1Vpp～15Vpp±1Vpp adjustable; Rise or Fall Time ≦120ns
- TTL Output
Level≧3Vpp ; Fan out; 20 TTL Load ;Rise and Fall Time ≦25ns
STORE/RECALL FUNCTION
10 groups of panel settings
