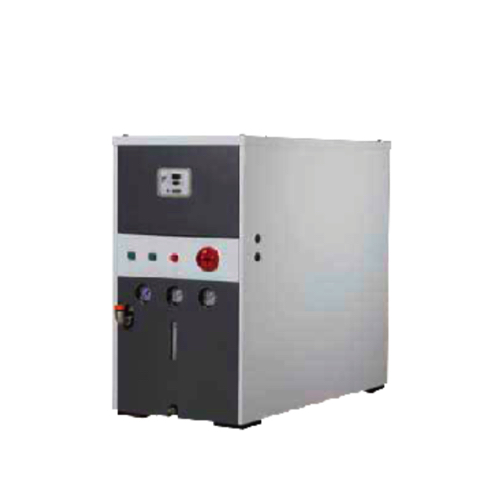

Habor RW-7.5RPTS Water Chiller (18600/22500 KCAL/H; 21600/26100 W; 74000/89000 BTU/H)

Cooling capacity

KCAL/H 50/60Hz: 18600/22500

W 50/60Hz: 21600/26100

BTU/H 50/60Hz: 74000/89000

Temperature controller

A: Fixed temperature control type (setting range: 10 - 40 °C)

B: Differential temperature control type (tracing ambient/machine body temperature, setting range: -9.9 to +9.9 °C)

Power source: 3Ø 200-230V 50/60Hz

Power Consumption (W): 8300

Pump

W: 860/1510

Max. flow rate (L/min): 80/100

Max. liquid lift (m): 23/34

Min. flow requirement of cooling water (L/min): 70

Piping Diameter (PT)

Liquid inlet: 1-1/4"

Liquid outlet: 1-1/4"

Cooling water inlet: 1-1/4"

Cooling water outlet: 1-1/4"

Water tank capacity: 170L

Dimension WxDxH (mm): 890x890x1255

Weight (KG): 406

Noise level: Below 80 dB(A)
