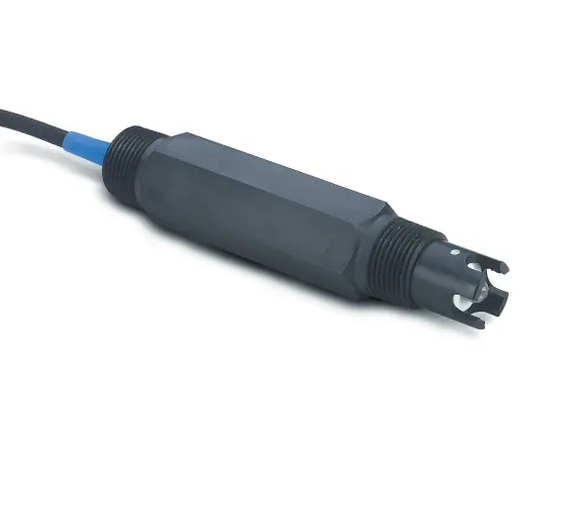

HACH DPC1R1N Digital Combination pH/ORP Sensor (-2000 a +2000 mV; 0 - 14 pH)

Accuracy: 0.1 pH under reference conditions

Body Material: PPS

Electrode Material: General Purpose Glass pH Electrode

Flow: 0 m/s (0 - 6.6 ft./s); non-abrasive

Measuring Range ORP: -2000 a +2000 mV

Operating Temperature Range: 0 - 105 °C

pH Range: 0 - 14 pH

Pressure Range: 0 - 6.9 bar at 100ºC (0 - 100 psig at 212ºF)

Range: Combination pH Sensors 0 - 14 pH

Sensor Cable: Integral coaxial cable (plus two conductors for temperature compensator option); 4.5 m (15 ft.) long

Sensor Thread: 0.75"

Specifications: Most pH applications fall in the 2.5-12.5 pH range. General purpose pH glass electrodes perform well in this range. Some industrial applications require accurate measurements and control at pH values below 2 or above 12. Consult Hach Technical Support for details on these applications.

Temperature Compensation: None

Transmission Distance: Signal Transmission Distance 1000 m (3280 ft.) when used with the Hach Digital Gateway, Termination Box, and SC Controller.

Warranty: 3 months

Wetted Materials: PPS® body (glass filled)

What's included?: Includes: sensor with 15 ft cable, digital gateway, 3 ft digital extension cable and manual

Datasheet
