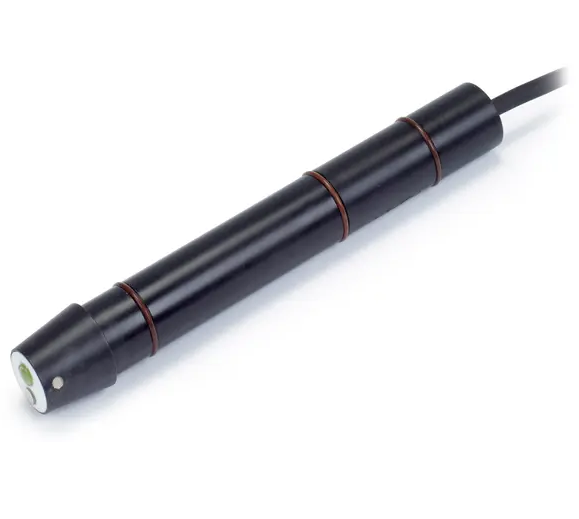

HACH DPC2K2A Digital Combination pH/ORP Sensor (0 - 14 pH)
Accuracy: 0.1 pH under reference conditions
Body Material: PVDF
Electrode Material: Flat Glass pH Electrode
Material: PVDF
Operating Temperature Range: 0 - 105 °C
Pressure Range: 0 - 6.9 bar at 100ºC (0 - 100 psig at 212ºF)
Range: Combination pH Sensors 0 - 14 pH
Sensor Cable: Integral coaxial cable (plus two conductors for temperature compensator option); 4.5 m (15 ft.) long
Sensor Thread: 0.75"
Specifications: Most pH applications fall in the 2.5-12.5 pH range. General purpose pH glass electrodes perform well in this range. Some industrial applications require accurate measurements and control at pH values below 2 or above 12. Consult Hach Technical Support for details on these applications.
Temperature Compensation: Pt 1000 ohm RTD
Transmission Distance: Signal Transmission Distance 1000 m (3280 ft.) when used with the Hach Digital Gateway, Termination Box, and sc100 Controller.
Wetted Materials: PVDF, PTFE double junction, glass electrode, FKM/FPM O-rings
What's included?: Includes: sensor with 15 ft cable, digital gateway, 3 ft digital extension cable and manual
