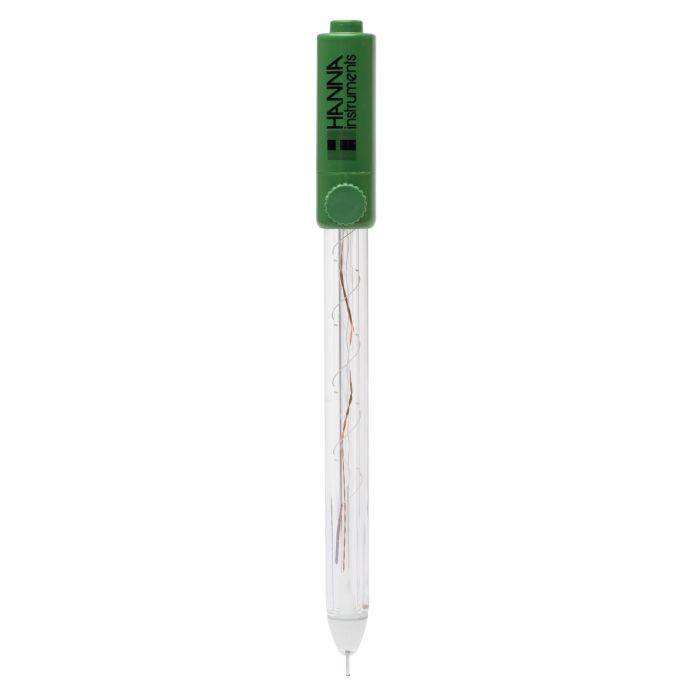

HANNA HI3618D-1 Glass Body ORP Electrode with DIN Connector

for HI8314-1

Measurement Range: ORP

Reference Cell Type: single, Ag/AgCl

Junction Type/Flow Rate: ceramic, single / 15-20 μL/h

Refill Electrolyte: 3.5M KCl + AgCl

Body Material: glass

Tip / Shape: platinum pin

Matching Pin: no

Max. Pressure: 0.1 bar

Temperature Operating Range: -5 to 70°C (23 to 158°F)

Body Length/Overall Length: 120 mm / 175.5 mm

Temperature Sensor: yes

Outer Diameter: 12 mm

Cable: 5-pole; 1 m (3.3')

Connector Type: DIN

Amplifier: yes

Recommended Use: laboratory general purpose

ORP Sensing Type: Platinum
