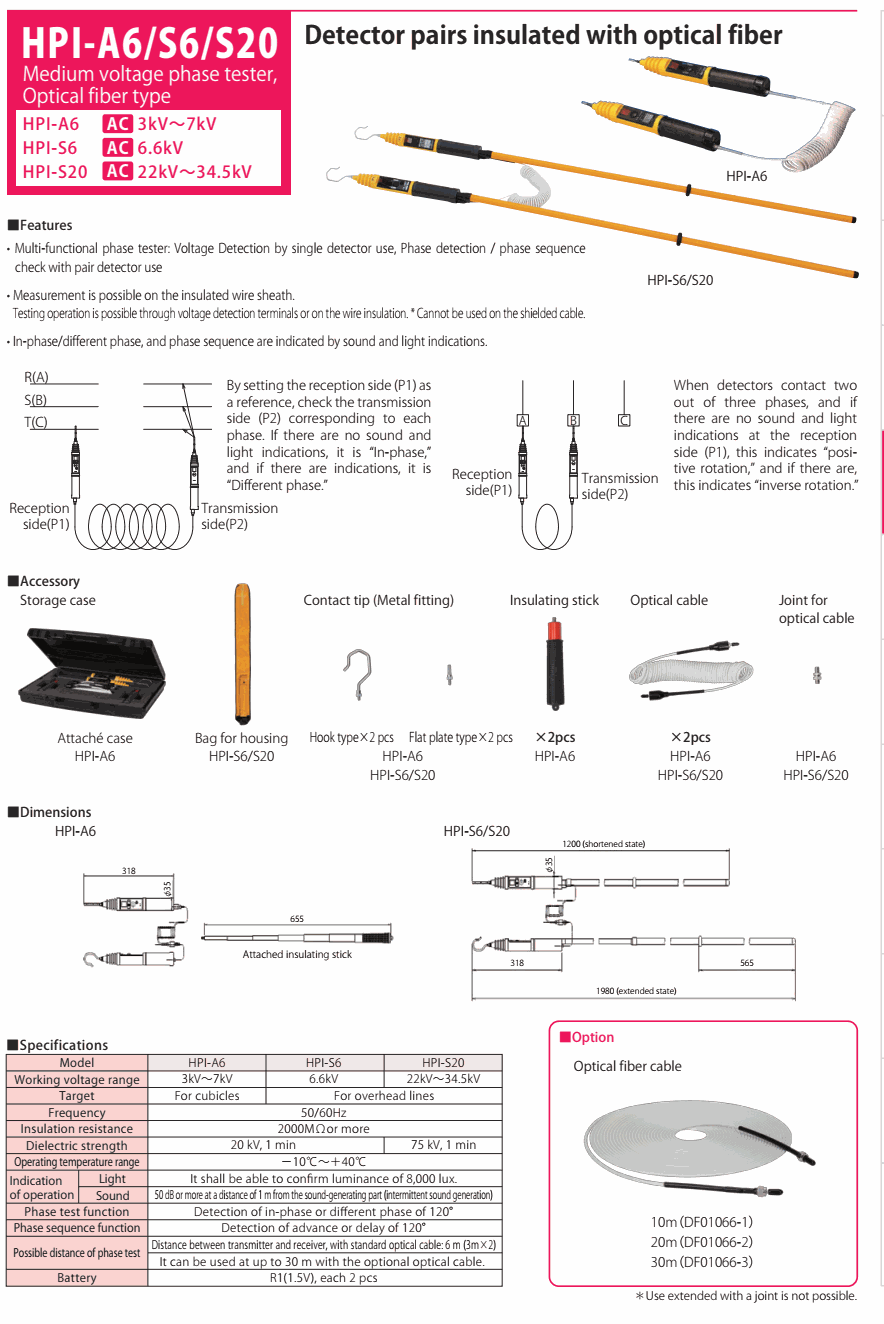

■Specifications
Working voltage range: 3kV～7kV
Target: For cubicles
Frequency: 50/60Hz
Insulation resistance: 2000MΩ or more
Dielectric strength: 20 kV, 1 min
Operating temperature range: － 10℃～＋ 40℃
Indication of operation:
Light: It shall be able to confirm luminance of 8,000 lux.
Sound: 50 dB or more at a distance of 1 m from the sound-generating part (intermittent sound generation)
Phase test function: Detection of in-phase or different phase of 120°
Phase sequence function: Detection of advance or delay of 120°
Possible distance of phase test: Distance between transmitter and receiver, with standard optical cable: 6m (3m×2)
It can be used at up to 30 m with the optional optical cable
Battery: R1(1.5V), each 2 pcs
■Accessory:
Storage case: Attaché case
Contact tip (Metal fitting): Hook type×2 pcs, Flat plate type×2 pcs
Insulating stick x2
Optical cable x2
Joint for optical cable
■Option: Optical fiber cable
10m (DF01066-1)
20m (DF01066-2)
30m (DF01066-3)
