■ Specifications
Working voltage range: AC: 20kV～80.5kV
Operation starting voltage (Voltage to ground): 5 kV ± 20% (bare wire)
Frequency: 50/60Hz
Indication of operation:
- Light: It can be confirmed in the luminance of 8,000 lux.
- Sound: 50 dB or more at a distance of 2m
Dielectric strength: Insulating stick, AC 75 kV/300mm x 1 min.
(6 locations on the insulating stick, except for electrode and joints)
Leakage current: 100 μA or less during dielectric strength test/1 place
Battery: LR44(1.5V) × 2 pcs
Life of the battery: About 4 hr. under continuously operating state
Operating temperature range: 10℃～＋50℃ (However, there shall be no dew condensation inside)
Weight: About 1kg
■ Accessory: Bag for housing

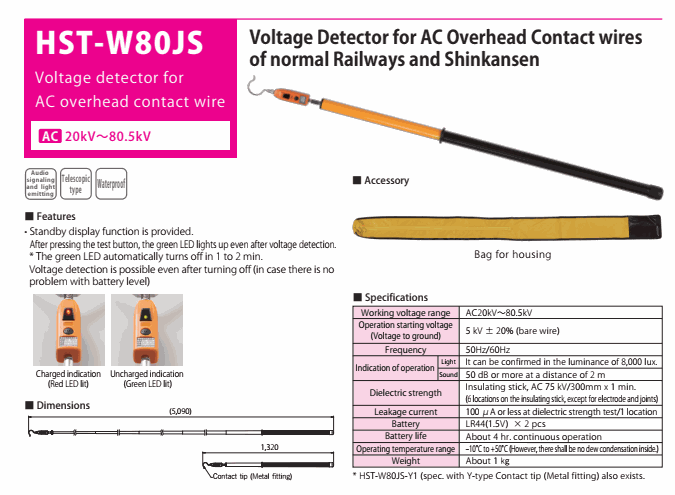

Datasheet
