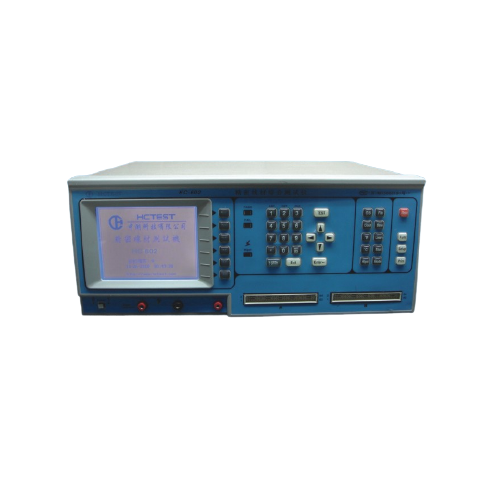

HCTEST HC-602A Connector Tester (2 wire; 200~1000VDC; 100~700VAC; DDR connector)

Name: HCTEST HC-602A Connector Tester (2 wire; 200~1000VDC; 100~700VAC; DDR connector)
Brand: HCTEST

ModelHC-602A

Warranty12 months

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Connector type: DDR

Test item range:

+ Open/ Short (os): 2KΩ~50KΩ

+ Conductance (Cond.): 0.1Ω~50Ω

+ Resistance (R): 0.1Ω~1MΩ

+ Capacitance (C): 10pF~1uF

+ Zener (D): 0~7V

+ Dc Insulation (Is.): 1MΩ~500MΩ

+ Ac Hipot (IL): 0.01mA~5mA

+ Intermittent Conductance (Int.cond.): 0.1Ω~50Ω

+ Intermittent Open/Short (Int.os): 2KΩ~50KΩ

Test information:

+ Output Rating: 5 VDC, 20mA max

+ DC Hipot/ insulation 200~1000V

+ AC Hipot / 100~700V (100V Resolution)

Test mode: NORMAL/ S.SIDE/ S.STEP

Communication interface: Handler/ Rs232/ Print/ USB

Measurement& scanning Mode:

+ Series/ Parallel

+ Auto/Short Switchable

Decision mode: Pass /fail (LED); Speaker

Lock Mode: Standard lock/ Password lock

Starting mode: Auto/ Manual/ Continuous/ External

Memory: 1024KB

Comprehensive information:

+ Power Input: 220V±10% 60Hz (Option 110V 50Hz)

+ Power consumption: 100W

+ Temp.: -10°C~35°C

+ Humidity : RH≤75%

+ Size: 425*190*350 (64p or 128P)/ 425*240*350 (256P)

+ Weight: 13kg(64p)/ 14kg(128p)/ 18kg(256p)

+ Display: 320*240 LED
