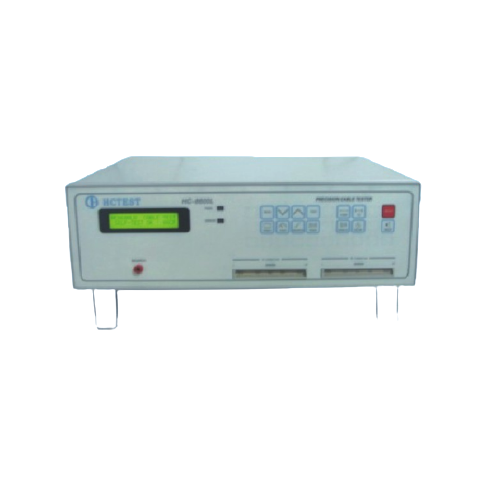

HCTEST HC-8600L Connector Tester (5VDC)

Provide DC5V testing open/ short

Display: LCD 2*20

Test item range:

+ Open/ Short (os): 5KΩ~50KΩ

+ Dc Insulation (Is.): 1MΩ~10MΩ

+ Intermittent Open/Short (Int.os): 5KΩ~50KΩ

Test mode: NORMAL / S.SIDE / S.STEP

Communication interface: Handler/ Rs232/ Print/ USB

Scanning Mode: Auto/Short Switchable

Decision mode: Pass/ fail (led). Speaker

Starting mode: Auto

Memory: 64KB

Comprehensive information

+ Power Input: 220V ±10% 60Hz

+ Power consumption: 200W

+ Temp.: -10°C~35°C

+ Humidity: RH≤ 75%

+ Size: 425*132*345 (128p. 256p or 512p)

+ Weight : 5kg (128/256p); 6kg (512p)

Datasheet
