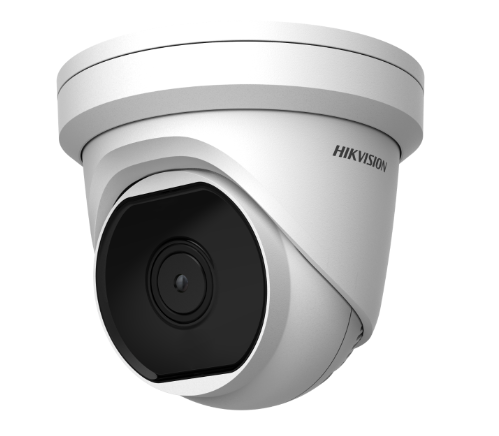

Thermal Module
Image Sensor: Vanadium Oxide Uncooled Focal Plane Arrays
Resolution: 160 × 120 (the resolution of output image is 320 × 240)
Pixel Interval: 17 μm
Response Waveband: 8 μm to 14μm
NETD (Noise Equivalent Temperature Difference): ≤ 40 mk (25 °C, F# = 1.1)
Focal Length: 6.2 mm
IFOV: 2.74 mrad
Field of View : 25.0° × 18.7° (H × V)
Min. Focusing Distance: 0.6 m
Aperture: F1.1
Digital Zoom: ×2, ×4, ×8
Smart Function
VCA (Video Content Analysis): 4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), up to 8 VCA rules totally.
Temperature Measurement: 3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line).
Temperature Range: -20 °C to 150 °C (-4 °F to 302 °F)
Temperature Accuracy: ± 8 °C (± 14.4 °F)
Fire Detection: Dynamic fire detection, up to 10 fire points detectable.
General
Menu Language: 32 languages
Power: 12 VDC ± 20%, two-core terminal block, PoE (802.3af, class 3)
Power Consumption: 12 VDC ± 20%: 0.4 A, max. 4.5 W, PoE (802.3af, class 3): 42.5 V to 57 V, 0.14 A to 0.22 A, max. 5 W
Working Temperature/Humidity: -40 °C to 65 °C (-40 °F to 149 °F), 95% or less
Protection Level: IP66 Standard, TVS 6000 V lightning protection, surge protection, voltage transient protection
Dimensions: 138.3 mm × 138.3 mm × 123.1 mm (5.45 " × 5.45" × 4.85 ")
Weight : 920 g (2.03 lb)
