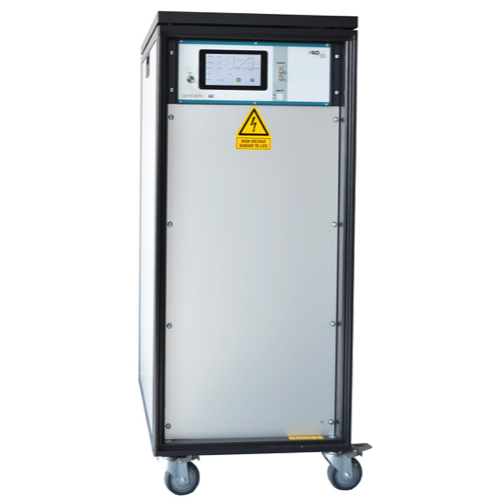

HILO-test HVTS 3020 Alternating Voltage Testing Set (30 kV; 20 mA)

Mainframe

Microprocessor controlled touch panel: 7”, capacitive

Optical Ethernet Interface for remote control of the generator: optional

Interface for saving reports: USB

External Trigger input/ output: Switch/ 10V

Connector for external safety interlock loop: 24 V=

External red and green warning lamps: 24 V=, 40 mA

Mains power: 230 V, 50/60 Hz

Dimensions (W * H * D): 550 * 1250 * 800 mm³

Weight: 80 kg

HV-Generator

Test voltage, adjustable: 0.1 - 30 kV=

Test current, adjustable: 1 - 20 mA

Short circuit current (according to the requirements of VDE 0551): > 20 mA

Test mode, available: turn-off / burn

High voltage output, referred to ground: back

Tolerance of output voltage amplitude: ± 1% based on full scale.

Rise of sinus voltage ramp, adjustable: 0.1 - 30 kV/s

Rise of sinus voltage ramp, adjustable: 1 V/s - 10 kV/s

Test time, adjustable (1 sec/Step, turn-off & burn): 1 - 100 sec

Test time, adjustable (10 sec/Step, only for turn-off): 1 - 1000 sec

Datasheet
