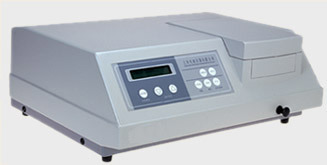

HINOTEK SP2000 Visible Spectrophotometer (325-1000nm)

Basic testing mode:

Basic measurement:

-Photometric measurement,(A/T)

- Concentration measurement (C)

Concentration measurement:

- Slope method (C=K*A)

- Standard curve method

Software functions: Win-spec workstation, SP-1.33EN

Photometric analysis: T, A, and C measurement

Quantitative analysis: Standard curve measurement

Kinetic analysis: Measurement with time-scanning

Main Specification:

Display: 3.5bits digital LCD Displayer

Light Source: 6V10W Halogen Lamp(2000 hours)

Sample Compartment(Max): 50mm Optical Path

Standard Cell Holder: 50mm

Standard Cell Configuration: 10mm Glass cell(4pcs)

Power Requirement: 110/220VAC，50/60Hz,±10%

Basic instrument functions:

100%T or 0%T setup: Automatic.

Signal output: RS-232C, Analog

Communication function: Intercommunication can be realized after connecting to PC

Photometric Performance:

Photometric Analysis: T, A, and C measurement;

Photometric Range: 0-125.0%T，0-1.999A, 0-1999C， 0-1999F

Photometric Accuracy: ±0.5%T

Photometric repeatbility: 0.3%T

Stability: ±0.003A/hr (at 500nm, after warming up for 1

hour)

Optical Performance:

Optic System: Littrow type optic system with 1200 grooves/mm diffraction grating monochromator

Light path: 100mm

Spectrum bandwidth: 5nm

Wavelength range: 325-1000nm

Wavelength accuracy: ±2nm

Wavelength repeatability: 1nm

Stray light: ≤0.5%T（at 360nm ）
