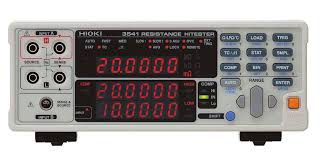

Hioki 3541 Resistance HiTESTER

Specification
- Resistance range:
+ 20mΩ(Max.20mΩ)/resolution 0.1μΩ~100MΩ(max.110MΩ)/resolution 1kΩ
+ 2Ω(max.2Ω)/resolution 10μΩ~2kΩ(max.2kΩ)/ resolution 10mΩ
- Measurement accuracy:
+ 2kΩ/20kΩ là ±0.007 % rdg. ±0.0015 % f.s
+ 2Ω/2kΩ là ±0.011 % rdg. ±0.01 % f.s
- Testing current:
+ 100nA là 1A DC
+ Low Power ON: 10μΩ là 10mA DC
- Open-terminal voltage: 5V DC 20/200mΩ), 2.6V DC (2~20kΩ), 13V DC(1M~100MΩ)
- Sampling rate: FAST, MEDIUM, SLOW, 3 settings
- Measurement times:
+ Fast: 0.6ms ± 0.3ms 50/60Hz
+ Medium: 21ms ± 1ms/50Hz, 17ms ± 1ms/ 60Hz
+ Slow1: 155ms ± 5ms/50Hz, 149ms ± 5ms/60Hz
+ Slow2: 455ms ± 10ms/50Hz, 449ms ± 10ms/60Hz
- Other functions: BCD, Temperature measurement (-10.0 to 99.9°C), Comparator , Delay, OVC (offset voltage compensation), Measurement fault detection, Probe short-circuit detection, Improve contact, Auto-memory, Statistical calculations, Settings monitor , Trigger function
- Interface: RS-232C, Printer, GP-IB (Model RM3542-01)
- External I/O: Trigger, Hold input, Comparator output, Settings monitor terminal
- Power supply, consumption: 100 to 240 V AC, 50/60 Hz, 30 VA max.
- Dimensions, mass: 215 mm (8.46 in) W × 80 mm (3.15 in) H × 295 mm (11.61 in) D, 2.6 kg (91.7 oz)
- Supplied accessories: CLIP TYPE LEAD 9287-10 × 1, TEMPERATURE PROBE 9451 × 1, Power cord × 1, EXT I/O Male connector × 1, Operation manual × 1
- The warrnty preiod: 12 month
