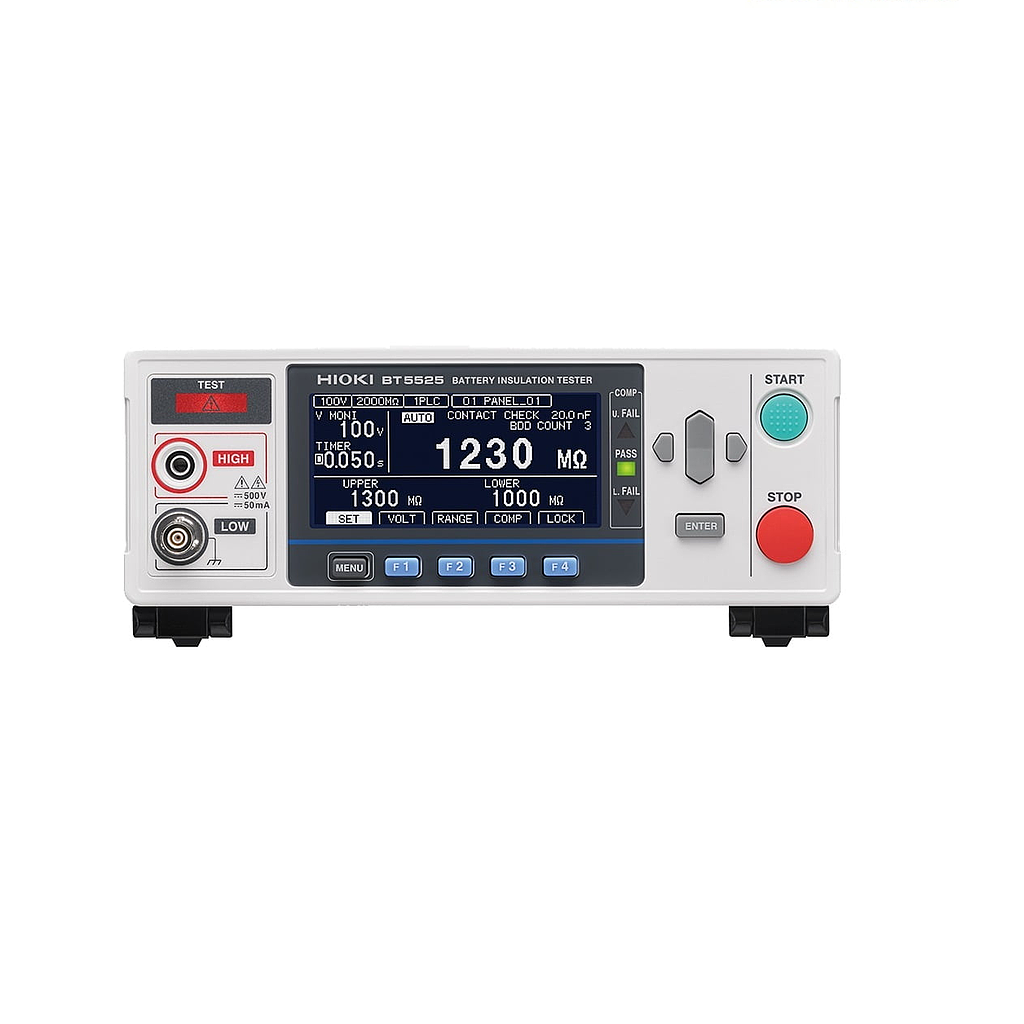

HIOKI BT5525 Battery Insulation Tester

Output specifications

Output voltage: 25 V to 500 V, Setting resolution 1 V

Charging current (Current limit function): 50 µA to 50 mA, Minimum setting resolution 10 μA

Short-circuit current: 60 mA or less

Discharge current: 40 mA or greater

Measurement specifications:

Resistance value display range: 0.050 MΩ to 9999 MΩ

Resistance range: 2 MΩ, 20 MΩ, 200 MΩ, 2000 MΩ, AUTO

Basic specifications:

±1.5％ rdg.±2 dgt.

25 V ≤ V < 100 V [0.05 MΩ to 2 MΩ]

100 V ≤ V ≤ 500 V [0.2 MΩ to 20 MΩ]

Time specifications:

Test time: 0.050 s to 999.999 s, OFF

Comparator delay time: 0.001 s to 999.999 s, AUTO

Display update speed: 1 PLC

Sampling time: 1 PLC to 100 PLC

Memory functions:

Panel save function : Saves up to 15 sets of measurement conditions

Measured value memory function : Saves up to 999 measured values in the instrument's internal memory

Judgment functions:

Test modes: Continuous test, PASS STOP, FAIL STOP

Comparator function:

UPPER_FAIL: Measured value > upper limit value

PASS: Upper limit value ≥ measured value ≥ lower limit value

LOWER_FAIL: Measured value < lower limit value

Various functions

Break Down Detect function (BDD): Detecting minuscule insulation defects caused by contamination

Contact check function: 2-terminal capacitance measurement method

Automatic data output function: Automatic output of measurement results via communication interface after completion of test

Command monitor function: Screen display of commands being sent and received

External I/O monitor function: Screen display of output signal ON/OFF and input signal status

Analog output function: Converts measured values to 0 to 4 V DC and outputs

Interfaces: USB, LAN, RS-232C, EXT. I/O

Power supply: 100 V to 240 V AC

Power consumption: Approx. 20 VA

Maximum rated power: 100 VA

Dimensions and mass: Approx. 215 mm (8.46 in) W × 80 mm (3.15 in) H × 306.5 mm (12.07 in) D (excluding protruding parts), Approx. 2.8 kg (98.8 oz)

Included accessories: Power cord ×1, EXT. I/O male connector ×1, EXT. I/O connector cover ×1, EXT. I/O interlock cancellation jig ×1, Startup Guide ×1
