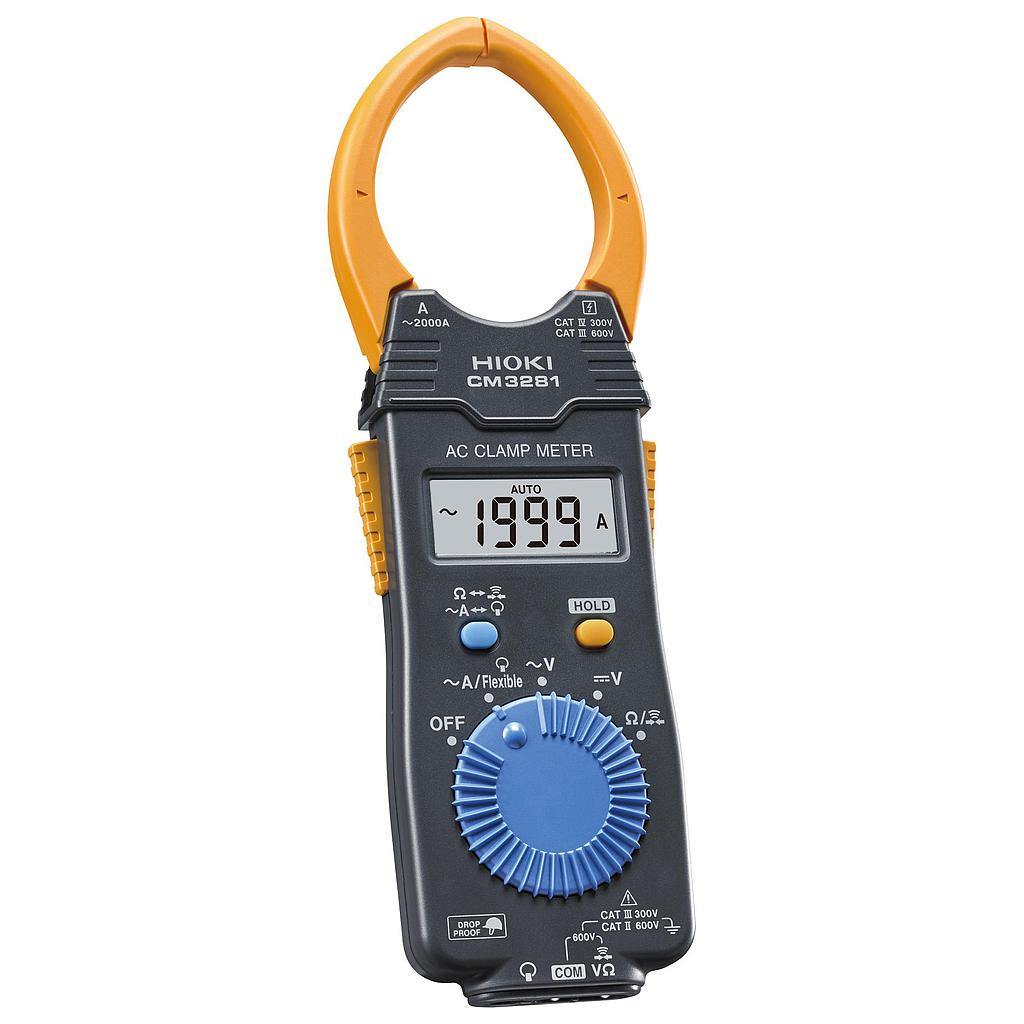

HIOKI CM3281 AC CLAMP METER (AC 2000 A)

AC Current range: 42.00 to 2000 A, 3 ranges (50 Hz to 60 Hz, Average rectified),

Basic accuracy 50-60 Hz: ±1.5% rdg. ±5 dgt.

DC Voltage range: 420.0 mV to 600 V, 5 ranges, Basic accuracy: ±1.0 % rdg. ±3 dgt. (at 4.2 V range)

AC Voltage range: 4.200 V to 600 V, 4 ranges (45 to 500 Hz, Average rectified),

Basic accuracy 45-66 Hz: ±1.8% rdg. ±7 dgt. (at 4.2 V range)

Resistance range: 420.0 Ω to 42.00 MΩ, 6 ranges, Basic accuracy: ±2.0 % rdg. ±4 dgt. (at 420 Ω range)

Other functions:Continuity check: Buzzer sounds at 50 Ω ±40 Ω or less, Data hold, Auto power save, Drop-proof from height of 1 meter

Power supply: Coin type lithium battery (CR2032) ×1, Continuous use 120 hours

Core jaw diameter: φ 46 mm (1.81 in), Jaw dimension: 65 mm (2.56 in) W × 13 mm (0.51 in) D

Dimensions and mass: 57 mm (2.24 in) W × 198 mm (7.80 in) H × 16 mm (0.63 in) D, 103 g (3.6 oz)

Accessories: Carrying case ×1, TEST LEAD L9208 ×1, Coin type lithium battery CR2032 (for trial purposes only) ×1, Instruction manual ×1, Download guide ×1, Operating precautions ×1
