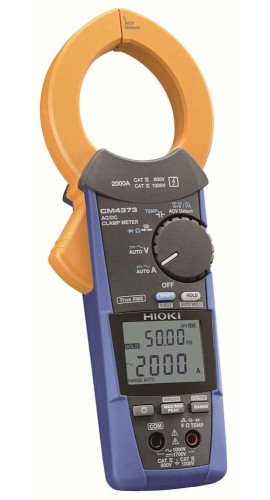

HIOKI CM4373 CLAMP METER (AC/DC 2000A; True RMS)

DC Current: 600.0 A/2000 A, ±1.3% rdg. ±3 dgt.

AC Current: 600.0 A/2000 A,±1.3% rdg. ±3 dgt.

DC Voltage: 600.0 mV to 1500 V, 5 ranges, ±0.5% rdg. ±3 dgt.

AC Voltage: 6.000 V to 1000 V, 4 ranges, ±0.9% rdg. ±3 dgt.

DC+AC Current: 600.0 A/2000 A, ±1.3% rdg. ±13 dgt.

DC+AC Voltage: 6.000 V to 1000 V, 4 ranges, ±1.0% rdg. ±7 dgt.

Resistance 600.0 Ω to 600.0 kΩ, 4 ranges, ±0.7% rdg. ±5 dgt.

Electrostatic capacity 1.000 μF to 1000 μF, 4 ranges, ±1.9% rdg. ±5 dgt.

Frequency 9.999 Hz to 999.9 Hz, ±0.1% rdg. ±1 dgt.

Continuity check

Diode Open terminal voltage: DC2.0 V or less, Measurement current: 200 μA, forward connection: 0.15 V to 1.8 V

Temperature (K): - 40.0 to 400.0 ˚C, add temperature probe accuracy to basic accuracy of ±0.5% rdg. ±3.0 ˚C

Voltage detection:Hi: 40 V to 600 V AC, Lo: 80 V to 600 V AC, 50/60 Hz

Other functions: Automatic AC/DC detection, Plus/Minus judgement function of DC A, DC V, Max/Min/Average/PEAK MAX/ PEAK MIN value display, Filter function, Display value hold, Auto hold, Back light, Auto-power save, Buzzer sounds

Display: Update rate: 5 times/s (excluding electrostatic capacity, frequency, and temperature)

Power supply: LR03 Alkaline battery ×2, Approx. 45 hours (Backlight OFF)

Core jaw diameter 92 mm (3.62 in) W×18 mm (0.71 in) D, φ55 mm (2.17 in)

Dimensions and mass 65 mm (2.56 in) W×250 mm (9.84 in) H×35 mm (1.38 in) D mm, 530 g (18.7 oz)

Accessories TEST LEAD L9207-10, CARRYING CASE C0203, LR03 Alkaline battery ×2, Instruction Manual
