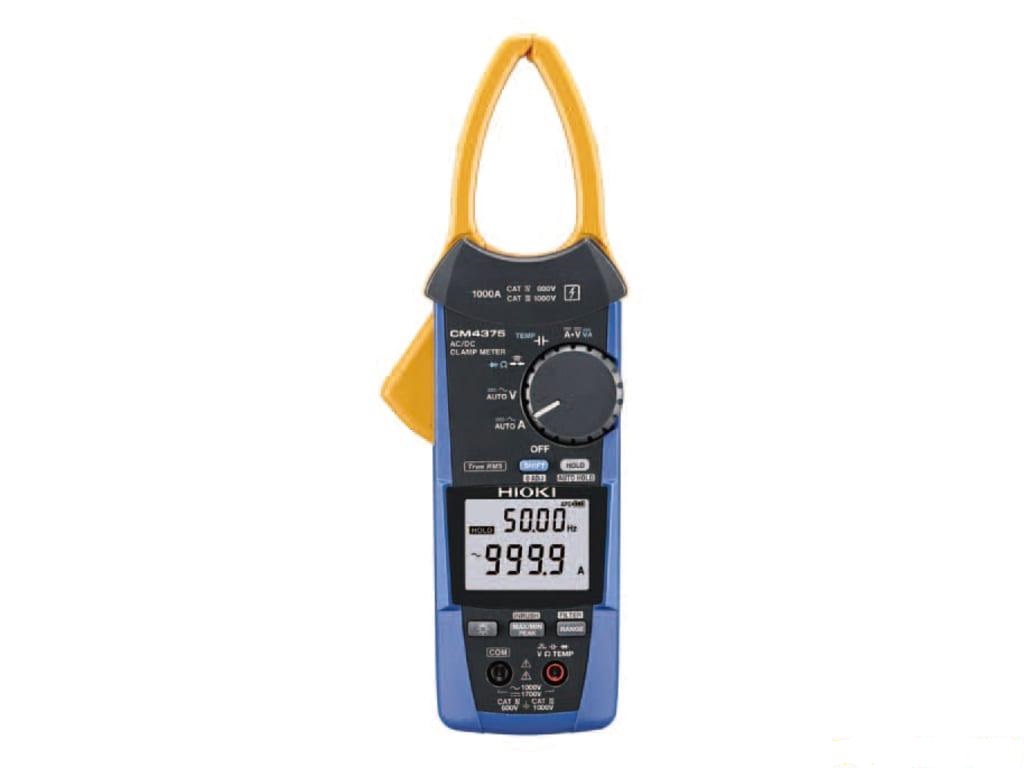

HIOKI CM4375 Clamp AC / DC (AC/DC 1000A; true RMS)

Indicator

- Electric current range DCA : 1000 A

Basic accuracy rating : ±1.3% rdg. ±0.3 A (ở 30.1 A - 999.9 A)

- Current measure range ACA : 1000A (10 Hz - 1 kHz, True RMS)

Basic Accuracy rating : 45-66 Hz: ±1.3% rdg. ±0.3 A (ở 30.1 A - 900.0 A)

-Current measurement range DC+AC : 1000 A (DC, 10 Hz - 1 kHz, True RMS)

Basic Accuracy rating : DC, 45-66 Hz: ±1.3% rdg. ±1.3 A (ở 30.1 A - 900.0 A)

- Capacity range DC : 0.0 VA - 1700 kVA (auto transmission based on voltage range ),

Basic Accuracy rating: ±2.0% rdg. ±20 dgt.

- Voltage measurement range DCV : 600.0 mV - 1500 V, (5 ranges),

Basic Accuracy rating : ±0.5% rdg. ±0.5 mV (ở 600 mV)

- Voltage measurement range ACV: 6.000 V - 1000 V, (4 dải) (15 Hz - 1 kHz, True RMS),

Accuracy rating : ±0.9% rdg. 0.003 V (ở 6 V)

- Voltage range DC+AC : 6.000 V - 1000 V, (4 dải),

Basic Accuracy rating : DC, 45-66 Hz: ±1.0% rdg. ±0.023 V (ở 6 V)

- Resistant measurement rating Ω : 600.0 Ω - 600.0 kΩ, (4 ranges),

Basic Accuracy rating : ±0.7% rdg. ±5 dgt.

- Capacitor measure range : 1.000 μF - 1000 μF, (4 dải),

Basic Accuracy rating: ±1.9% rdg. ±5 dgt.

- Frequency measure range : 9.999 Hz - 999.9 Hz,

Basic Accuracy rating : ±0.1% rdg. ±1 dgt.

- Type k temperature measurement : -40.0 - 400.0 ˚C (optical probe)

Basic Accuracy rating : ±0.5% rdg. ±3.0 ˚C

Other function : auto inspection AC/DC, voltage DC, dòng DC, hiển thị giá trị MAX/ MIN/ AVG/ PEAK MAX/ PEAK MIN, low pass filter, Alarm sound, backlight, automatd power off,....

Power : LR03 x 2, continuous in 40h (without backlight)

Clamp diameter : Ø34 mm

Dimension (WxHxD): 65x242x35mm

Weight : 330g

Accessories :wand L9207-10, case C0203, Pin LR03 x 2, manual
