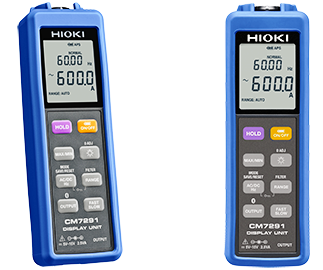

Hioki CM7291 DISPLAY UNIT

- SensorCT7642, 7742CT7636, 7736CT7631, 7731

- Measurement parametersDC, AC, DC+AC, Hz

- Crest factor3 at 5000 count or 2.5 at 6000 count for AC and DC+AC

- Output methodWAVE, RMS, PEAK, FREQ

- Input connectorsHIOKI PL 14

- Output update timePEAK--- FAST: 0.02 s / NORMAL: 0.2 s / SLOW: 1 s

- FREQ--- FAST: FAST: 0.2 s / NORMAL: 0.2 s / SLOW: 3.0 s

(WAVE, RMS: analog output)

- PEAK sensing duration2 ms or greater

(during PEAK MAX/PEAK MIN and PEAK output)

- Other functionsAuto range, Zero adjustment at power-up, Analysis display, Filter, Output amplification, Display value hold, Backlight , Auto-power save, Save settings, keypad lock

- Typical accuracy (WAVE output DC)±2.0% rdg. ±10.8 mV

(60.00 A range)±2.5% rdg. ±30.8 mV

(60.00 A range)±1.5% rdg. ±5.8 mV

(60.00 A range)

- Typical accuracy (RMS output AC)±2.3% rdg. ±10.8 mV

(60.00 A range)±28% rdg. ±30.8 mV

(60.00 A range)±1.8% rdg. ±5.8 mV

(60.00 A range)

- Communication interfaceBuilt in Bluetooth® 4.0 LE, Display of measured values on an iOS or - - - - Android handset using Bluetooth® communications (CM7291 only)

- Power supplyLR6 alkaline batteries (AA) ×2, Continuous use: 16 h (backlight OFF and WAVE or - RMS output, when used with CT7600s), Rated power 2.5 VA

or AC adapter 9445-02/03 (100 to 240V AC), or 5 to 15 V DC external power supply, Rated power 2.5 VA

- Dimensions and mass52 mm (2.05 in)W × 163 mm (6.42 in)H × 37 mm (1.46 in)D, 220 g (7.8 oz) (including protector and battery)

- AccessoriesLR6 alkaline batteries ×2, Protector ×1, Instruction manual ×1
