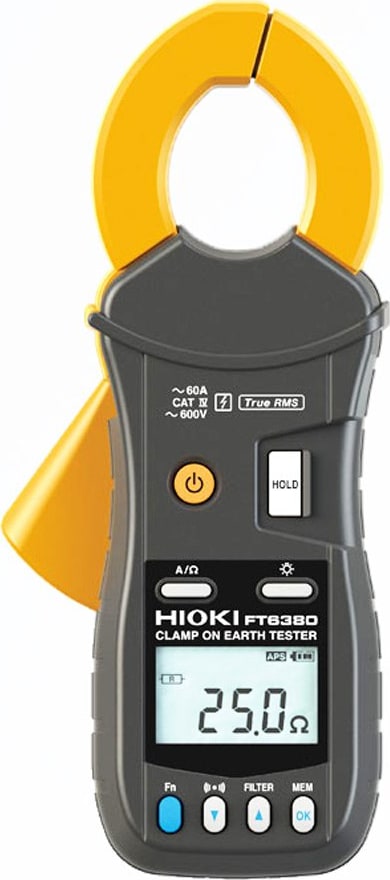

HIOKI FT6380 CLAMP ON EARTH TESTER

Manufacturer: Hioki Japan

Made in Japan

Warranty: 12 months

Earthing resistance: 0.20 Ω (0.01 Ω resolution) to 1600 Ω (20 Ω resolution)

Zero suppression: Less than 0.02 Ω,

Accuracy: ±1.5 % rdg. ±0.02 Ω

AC Current measurement: 20.00 mA (0.01 mA resolution) to 60.0 A (0.1 A resolution), 5 ranges, Zero suppression: Less than 0.05 mA, Accuracy: ±2.0 % rdg. ±0.05 mA (30 Hz to 400 Hz, True RMS), Crest factor 5.0 and under (1.7 and under at 60 A range)

Max. allowable input AC 100 A continuous, AC 200 A for 2 minutes or shorter (at 50/60 Hz, requires derating at frequency)

Max. rated voltage to earth: AC 600 V CAT IV

Memory function: 2000 data

Alarm function: For resistance measurement and current measurement, Beeps when measured value is less than or greater than threshold

Other functions: Data hold, Back light, Filter, Auto power save

Display: Digital LCD, max. 2000 dgt.,

Power supply LR6 (AA) alkaline batteries ×2, Max. rated power: 450 mVA, Continuous use : 35 hr (in-house testing conditions)

Core jaw diameter: φ 32 mm (1.26 in)

Dimensions and mass:73 mm W × 218 mm H × 43 mm D, 620 g

Accessories: Carrying case ×1, Resistance check loop ×1, Strap ×1, LR06 alkaline battery ×2, Instruction manual ×1
