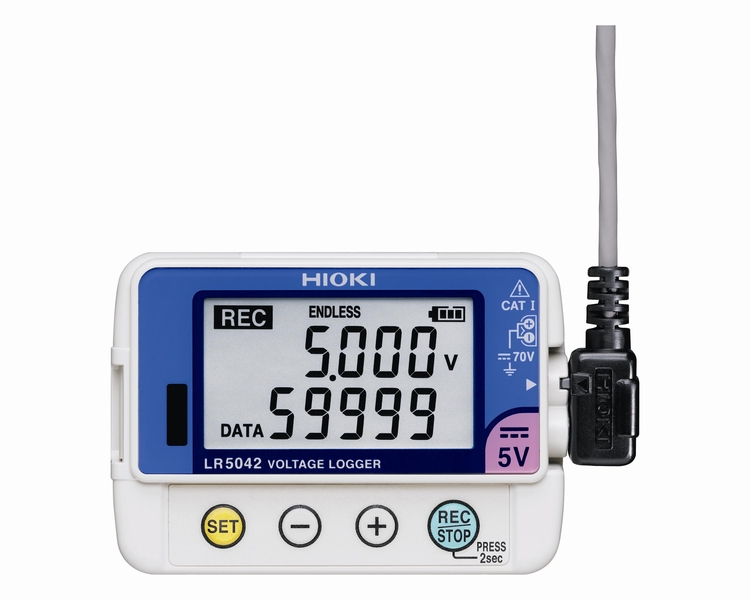

Specification
- Features: Record instrumentation signals and measure analog output from sensors and other devices
- Function: Preheat function (When using preheat function, a separate external power supply is required.)
- Measurement items: DC voltage 1ch
- Measurement range: -5.000V to 5.000V
- Basic Accuracy: ±0.5%rdg. ±5dgt. (@23°C±5°C)
- Waterproof and dustproof: IP54 (splash-proof construction)
- Operating temperature and humidity: humidity -20°C(-4°F) to 70°C(158°F) , 80%rh or less
- Dimensions & Mass: 79x57x28mm, 105g
- Power supply: Pin LR6 (AA) 1.5V×1
- Battery life:
+ Case 1 : Approx. 2 years
+ Case 2: Approx. 2 months
- Accessories: CONNECTION CABLE LR9802×1, Kickstand LR6 (AA) Alkaline battery 1.5V×1, Instruction manual ×1, Operation manual×1
- The warrnty preiod: 12 month
| Features | Record instrumentation signals and measure analog output from sensors and other devices |
| Function | Preheat function (When using preheat function, a separate external power supply is required.) |
| Measurement items | DC voltage 1ch |
| Measurement range | LR5041: -50.00mV to 50.00mV LR5042: -5.000V to 5.000V LR5043: -50.00V to 50.00V |
| Basic Accuracy | ±0.5%rdg. ±5dgt. (@23°C±5°C) |
| Waterproof and dustproof | IP54 (splash-proof construction) |
| Operating temperature and humidity | -20°C(-4°F) to 70°C(158°F) , 80%rh or less (non-condensating) |
| Dimensions & Mass | Approx. 79mm(3.11in)W×57mm(2.24in) H×28mm(1.10in)D, 105g(3.7oz) |
| Power supply | LR6 (AA) Alkaline battery 1.5V×1 |
| Battery life | Case 1 : Approx. 2 years (1min. recording interval, power-saving mode, Instantaneous recording, environmental temp.20°C) Case 2: Approx. 2 months (1sec. recording interval, power-saving mode, Instantaneous recording, environmental temp.20°C) |
| Accessories | CONNECTION CABLE LR9802×1, Kickstand LR6 (AA) Alkaline battery 1.5V×1, Instruction manual ×1, Operation manual×1 |
Catalog
DATA LOGGER Data Loggers LR5000 Series
product catalog.pdf (3.32 MB) (2011-11-02 updated)
