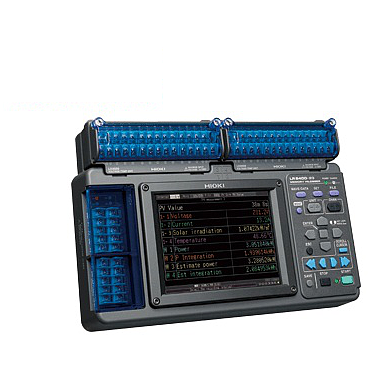

HIOKI LR8400-20 HiLOGGER MEMORY
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
SPECIFICATIONS
- Analog input UNIVERSAL UNIT LR8501:
+ 15 analog channels
+ Voltage:10mV~100V, 1-5V f.s. 10 ranges, resolution: 500nV
+ Temperature: -200°C to 2000°C. resolution 0.01°C
+ Temperature: Pt 100, JPt 100 sensor. -200°C~800°C, resolution 0.01°C
+ Resistance: 10 Ω~200 Ω f.s.
+ Humidity: 100 % rh f.s. 5.0~95.0 % rh/ resolution 0.1% rh
- Analog input VOLTAGE/TEMP UNIT LR8500:
+ 15 analog channels
+ Voltage: 10 mV~100 V, 1-5 V f.s. / resolution: 500 nV
+ Thermocouples: -200°C~2000°C / resolution 0.01°C
+ Humidity 100 % rh f.s. 5.0~95.0 % rh / resolution 0.1 % rh
- Pulse, Digital input:
+ 8 channels, pulse / digital
+ Pulse totalization: 0~1000 M pulse
+ Pulse revolutions: 0 to 5000 /n (r/s) f.s/ resolution 1/n(r/s)
- Recording intervals: 10ms~50ms, 100ms~1hour, 19selections
- Digital filter: Select from OFF/ 50 Hz/ 60 Hz
- Data storage: 8 M-words, CF card or USB memory
- Inteface: LAN-100BASE-TX/ USB2.0
- Display device: 5.7 inch TFT color liquid crystal display
- Other functions: Save data CF card or USB memory stick
- Power supply:
+ AC ADAPTER 9418-15: 100 to 240 V AC, 50/60 Hz), 7VA
+ BATTERY PACK Z1000
- Product Net Weight: 1.8 kg
- Product Size: 272*182*66.5mm
- Supplied accessories:
+ Detailed operating manual ×1, Measurement guide ×1
+ AC ADAPTER 9418-15 ×1, USB cable ×1
+ CD-R (data collection software "Logger Utility") ×1
- The warranty period: 12 month
