SPECIFICATIONS
- Input(Fixed channels):
+ CH1: Voltage measurement mode, 1V f.s, 1,000 V
+ CH2: Current measurement mode, 1V f.s, 1,000 A
+ CH3: Insolation measurement mode, 20mV f.s, 140kW/m2
+ CH4: Panel temperature measurement mode
- Expansion channel settings:
+ CH5-CH11: Select as voltage, thermocouple, clamp (2000A, 200A, 100A, 20A, 10A)
+ CH12-CH15: Can not use in PV mode
- Equation (Fixed channels):
+ W1: Power(kW) = Voltage(CH1-1)*Current(CH1-2)
+ W2: Power integration(kWh) = Voltage*Current*time
+ W3: Estimated power(kW)
+ W4: Estimated integration(kWh)
+ W5: AC estimated power (kW)
+ W6: AC estimated integration(kWh)
+ W7: Estimated power approximation rate (%)
- Display:
+ PV Wave + Value, PV Wave + Crsr, Gauge + PV Wave
+ PV Value, Estimate Power, AC Estimate (reference values)
- Other specifications:

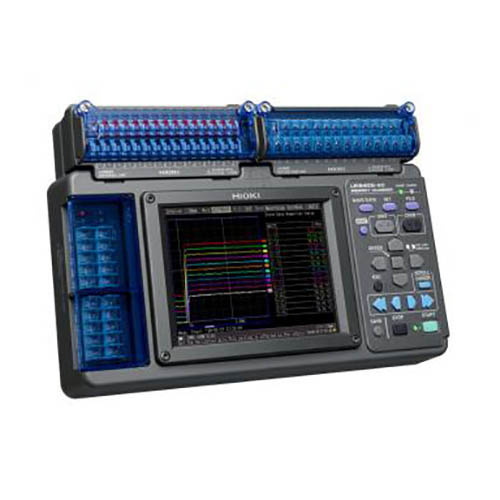

+ Functionality is so as LR8400-20 when PV mode is OFF
- The warranty period: 12 month
