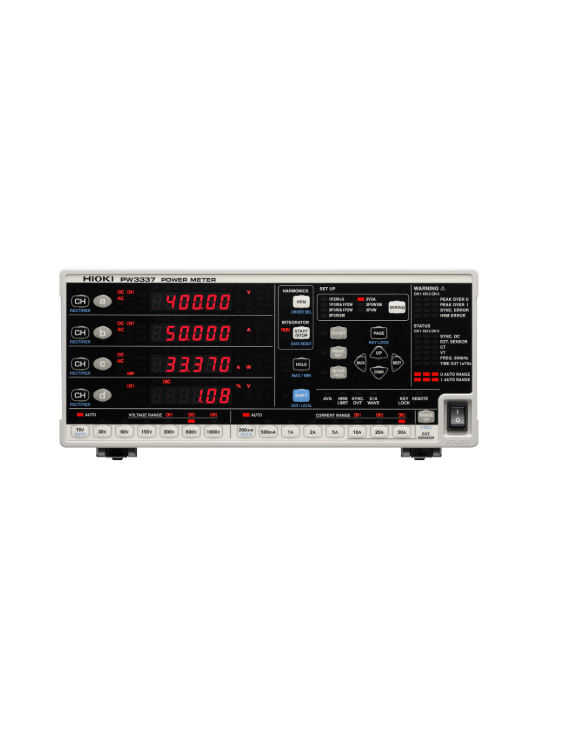

HIOKI PW3337-02 Power Meter

No. of channels: 3

Supported connections: Three-phase, three-phase + single-phase, single-phase x 3, DC x 3

Effective measurement range, voltage: 0.15 V to 1000 V

Effective measurement range, current: 2 mA to 65 A

Frequency band: DC, 0.1 Hz to 100 kHz

Basic accuracy, AC (Voltage, current, power): ±0.1% rdg. ±0.05% f.s.

Basic accuracy, DC (Voltage, current, power): ±0.1% rdg. ±0.1% f.s.

Integrated power measurement: Yes

Harmonic measurement: IEC61000-4-7 compliant

Current sensor input: Yes

Interface:

LAN: Yes

RS-232C: Yes

D/A output

Brochure
