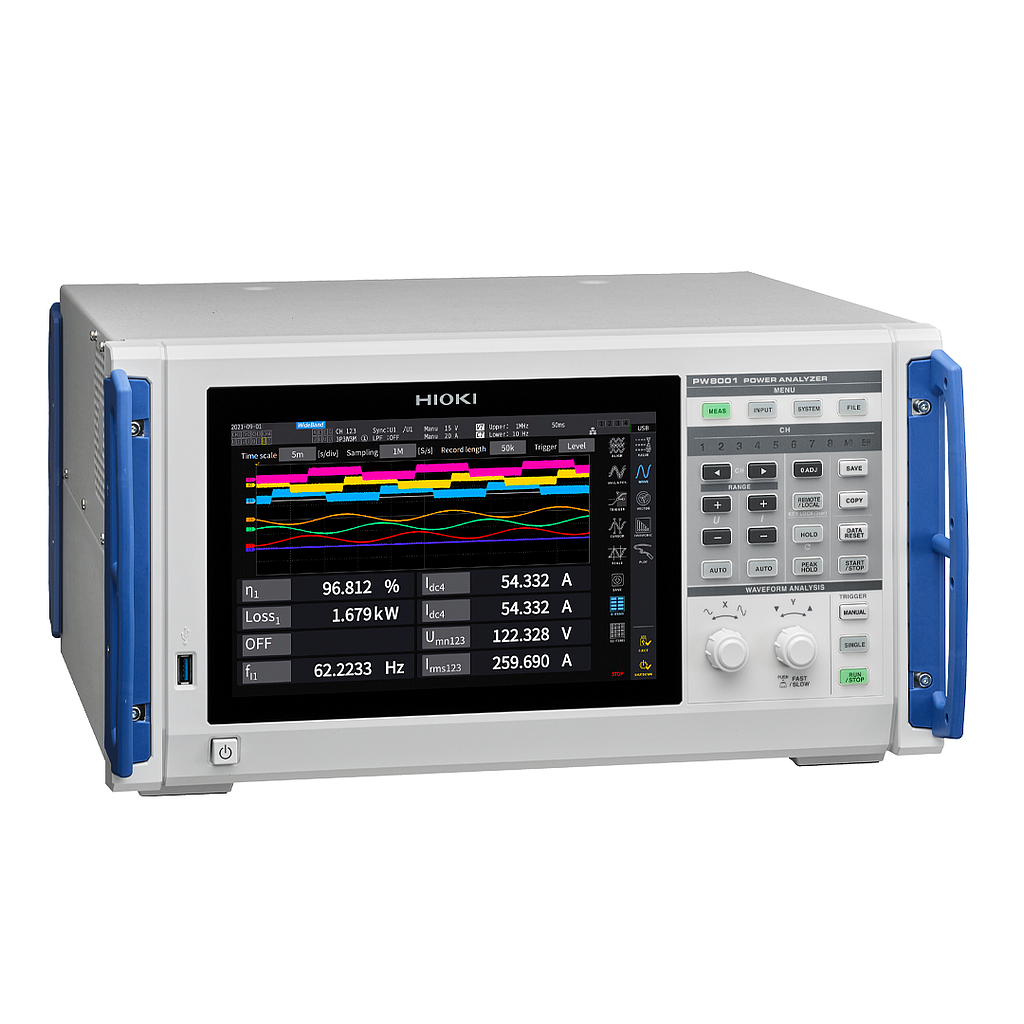

HIOKI PW8001 Power Analyzer (DC, 0.1 Hz to 5 MHz, 3-phase 4-wire)

Measurement lines: 1-phase-2-wire, 1-phase-3-wire, 3-phase-3-wire, 3-phase-4-wire

No. of PW8001 input units: Max. 8 units (mix and match)

Type of input unit:

U7001 2.5 MS/s INPUT UNIT

U7005 15 MS/s INPUT UNIT

Measurement frequency band:

U7001: DC, 0.1 Hz to 1 MHz

U7005: DC, 0.1 Hz to 5 MHz

Sampling:

U7001: 2.5 MHz, 16-bit

U7005: 15 MHz, 18-bit

Data update rate: 10 ms, 50 ms, 200 ms

Accuracy for power (U7001):

50/60 Hz: 0.02% of reading + 0.05% of range

DC: 0.02% of reading + 0.05% of range

50 kHz: 0.4% of reading + 0.1% of range

Accuracy for power (U7005):

50/60 Hz : 0.01% of reading + 0.02% of range

DC: 0.02% + 0.03% of reading of range

50 kHz: 0.15% of reading + 0.05% of range

Measurement range:

Voltage: 6 V, 15 V, 30 V, 60 V, 150 V, 300 V, 600 V, 1500 V

Current: (probe1) 100 mA to 2 kA, (probe2) 100 mA to 50 kA

(Range configuration changes depending on the current sensor used, U7001 only for Probe2.)

Measurement parameters: voltage (U), current (I), active power (P), apparent power (S), reactive power(Q), power factor (λ), phase angle (φ), voltage frequency（fU）, current frequency（fI）, efficiency (η), loss (Loss), voltage ripple factor (Urf), current ripple factor (Irf), current integration (Ih), power integration (WP), voltage peak (Upk), current peak (Ipk)

Harmonics measurement: maximum analysis order 500th

Waveform recording: recording capacity 5M words × ( [voltage/current] ) × - No. of channels + motor waveforms)

Motor analysis (option): voltage, torque, RPM, frequency, slip, motor power

FFT analysis*

Flicker measurement*

Calculation function: Efficiency and loss calculations, User-defined calculations*, Delta conversion, Current sensor automatic phase shift calculation

External interface: USB flash drive, LAN, GP-IB, RS-232C, external control, optical link*, BNC sync.*, CAN or CAN FD*

Power supply: 100 V to 240 V AC, 50/60 Hz, 230 VA

Dimensions and mass: Approx. 430 mm (16.93 in) W × 221 mm (8.70 in) H × 361mm (14.21 in) D, Approx. 14kg (493.84 oz)

Accessories:

- Power cord ×1

- Instruction Manual ×1

- GENNECT One (PC applications) CD ×1

- D-sub 25-pin connector ×1 (PW8001-02, -05, -12, -15 only)
