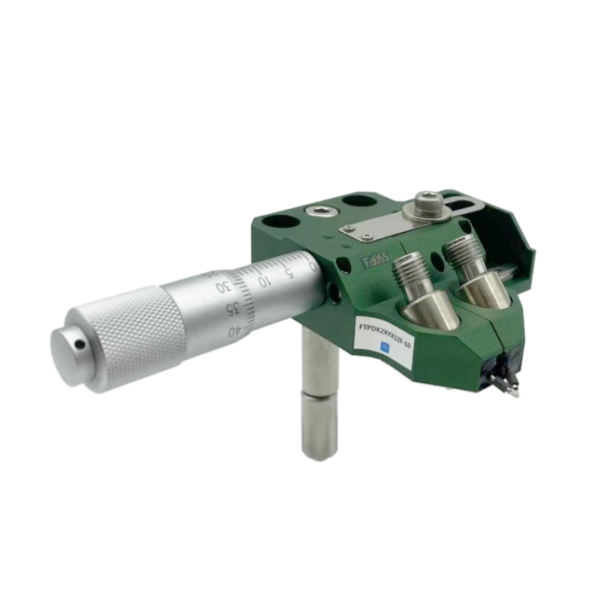

Honestco TPD40 RF Probe (40GHz, 2.92mm (J))
ManufacturerHonestco(View more products from this manufacturer)
ModelTPD40
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Characteristic impedance: 50 ohm
Frequency range: DC to 40GHz
Insertion loss (Typ. GSG-GSG-150μm): -1.0dB
Return Loss (Typ. GSG-GSG-150μm): -15dB
DC voltage: 100V
DC current: 1A
RF Power @ 10GHz max: 5W
Contact resistance on Au: 0.05 ohm
Connector : 2.92mm (J)
Available Pitch: 50 to 1000μm (25um step)
Available Configuration: GSG-GSG, GS-SG
Probe Material: TBD
Body Material: Aluminum Alloy
XY position error: Max 10um
Planarity error: Max 10um
