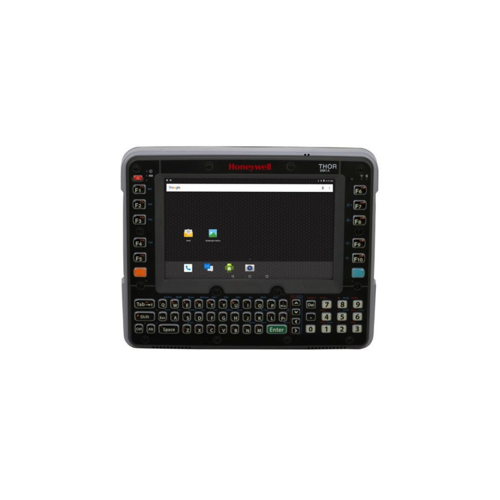

Honeywell Thor VM1A Vehicle-Mounted Computer (2.2 GHz Qualcomm Snapdragon™ 660 octa-core)

Processor: 2.2 GHz Qualcomm Snapdragon™ 660 octa-core

Operating System: Android 8. Guaranteed support through 13, committed to support 14 subject to confirmation of feasibility from Qualcomm.

Memory: 4 GB RAM, 32 GB Flash

Expanded Storage: User-accessible microSD card up to 512 GB (SDXC/SDHC compliant)

Audio: Audio for headset, integrated stereo speakers with adjustable volume control, integrated microphone

Enhanced Dock: 2x powered RS232 COM ports, 1x USB 2.0 powered host port Type A, 3 additional USB 2.0 powered host ports, 1x USB 2.0 Client port, 1x Ethernet RJ45 port, 1x CAN-bus port, 1x headset port, DC power input and ignition control input

Standard Dock: 2x powered RS-232 COM ports, 1x USB 2.0 powered host port, 1x USB 2.0 Client port, 1x CAN-bus port, 1x headset port, DC power input and ignition control input

Computer: 2x SMA connectors for external WLAN antennas

Sensors: Ambient light sensor, accelerometer, gyroscope, magnetometer

Display: 220 cm (8 in) WXGA (1280 x 768) LED backlit display, standard 400 NIT indoor display, optional 900 NIT outdoor display, optional screen blanking

Touch Panel:

Resistive: Industrial resistive touch panel supports finger and standard stylus touch; swipe support.

Capacitive: PCAP multi-touch panel for finger and conductive stylus; strengthened glass overlay. Automatic detection and configuration using mutual and self-capacitive modes for water rejection and use with a wide range of common gloves.

Keyboard: Full 64-key QWERTY keyboard with number pad and 10/20 function keys; all keys, except modifiers, are mappable; all keys backlit; key labels support ANSI and 5250 emulation.

Power Supply and UPS: 10 to 60V DC isolated, optional external converters for AC (90 to 240V AC) and extended range DC (60 to 150V DC); integrated Li-Ion maintenance UPS with 30-min life at 20°C (68°F), charging range 0°C to +35°C (32°F to +95°F).

Dimensions (L x W x H):

Computer: 268 mm x 214 mm x 43 mm (10.6 in x 8.4 in x 1.7 in)

Weight: 2.1 kg (5.6 lb)

Dock: 180 mm x 155 mm x 64 mm (7.1 in x 6.1 in x 2.5 in)

Operating Temperature: -20°C to +50°C (-4°F to +122°F)

Storage Temperature: -30°C to +50°C (-22°F to +122°F)

Humidity: 5% to 95% relative humidity (non-condensing)

Wireless Connectivity: WLAN, Wi-Fi, Bluetooth, NFC

Datasheet
