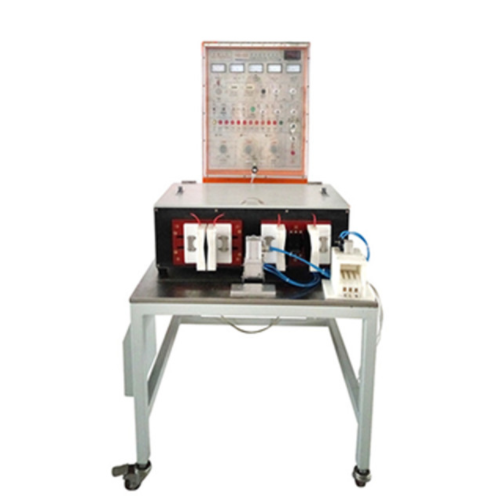

Hongdu HD-10D Plug Comprehensive Testing Machine (DC24V)

Polarity continuity test: Polarity test voltage: DC24V

Ground current test:

- Loop current: 0-30A Adjustable (1.5 square millimeters of wire length less than 10 meters)

- Wave shape: 50/60HZ AC sine wave

- Current correction: ±5% Within

High-pressure test:

- External high pressure: 0-5KV Adjustable

- Interelectrode high voltage: 0-3KV Adjustable

- Wave shape: 50/60HZ AC sine wave

- Transformer rated power: 500VA

- High pressure meter: 1.5 CLASS

- High voltage calibration: ±5% Within

AC/insulation resistance test:

- The output voltage: 2500V/AC

- Voltage calibration: ±5%

- Indicator header (0.4-10MΩ): ±5%

- Reference set point: 5MΩ

- Judgment accuracy: ±5%

DC/insulation resistance

- DC/insulation test voltage: 500V

- Reference set point: 100MΩ
