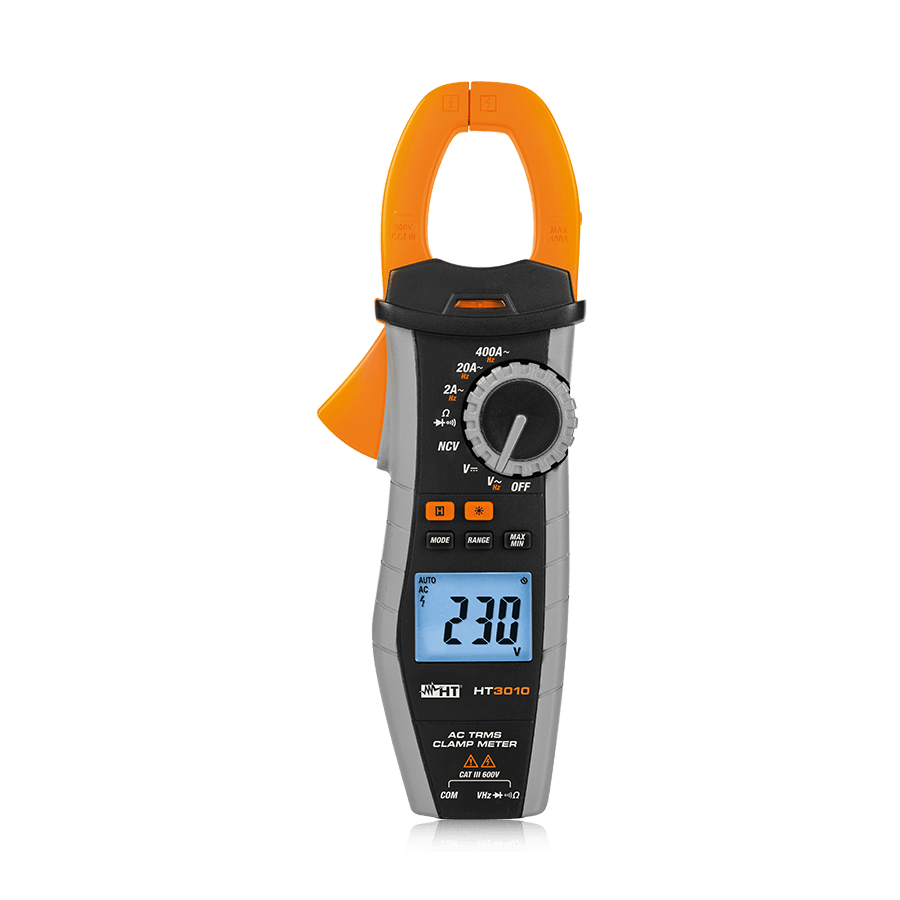

HT HT3010 AC Clamp Meter (TRMS, 400AAC)

DCV: 200.0mV ~ 600V

ACV (TRMS): 200.0mV ~ 600V

ACA (TRMS): 2.000A ~ 400A

Resistance and Continuity test: 200.0Ω ~ 20.00MΩ

Diode test: Yes

Frequency: 10Hz ~ 19.99kHz

Size (L x W x H): 220 x 81 x 42mm

Weight (including battery): 320g

Max conductor size: 30mm

Mechanical protection: IP40

Battery type: 3x1.5V batteries type AAA LR03

Display: 4 LCD (max 6000 counts), sign, decimal point, backlight

Reference temperature: 23°C ±5°C

Operating temperature: 0°C ÷ 40°C

Operating humidity: <75%RH

Storage temperature: -10°C ÷ 50°C

Storage humidity: <75%RH
