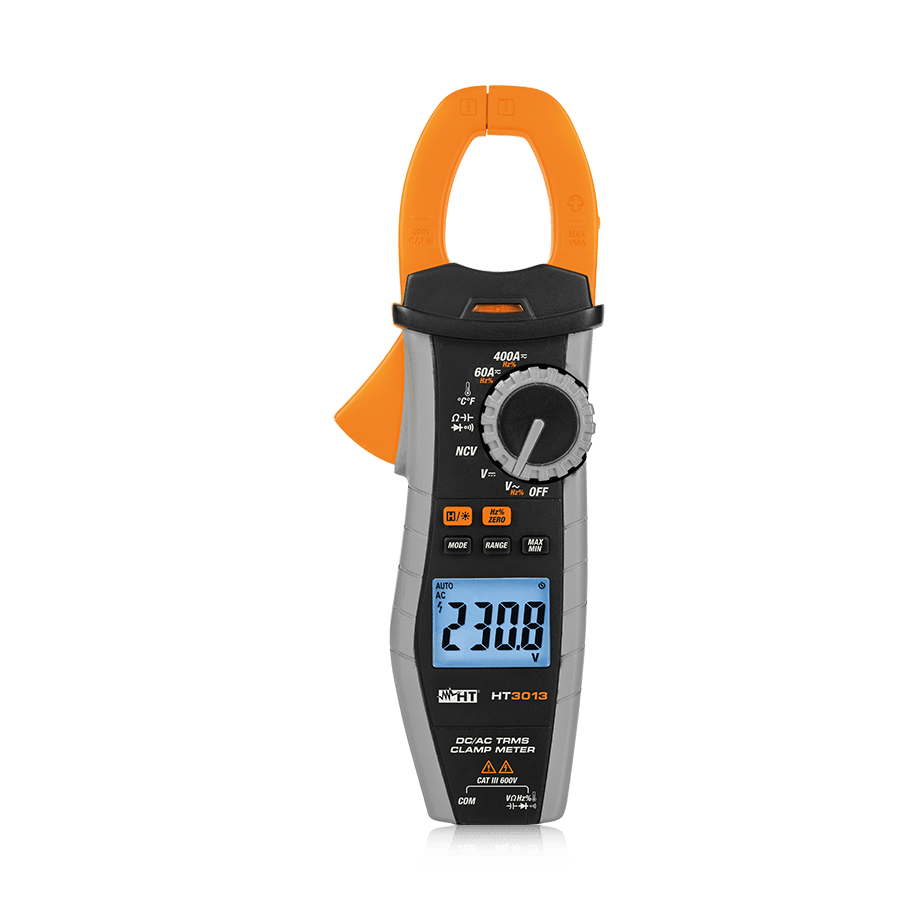

HT HT3013 AC Clamp Meter (TRMS, 400AAC)

DCV: 600.0mV ~ 600V

ACV (TRMS): 600.0mV ~ 600.0V

DCA: 60.00A ~ 400.0A

ACA (TRMS): 60.00A ~ 400.0A

Resistance and Continuity test: 600.0Ω ~ 60.00MΩ

Capacitance: 60.00nF ~ 6.000mF

Diode test: Yes

Frequency: 10Hz ~ 19.99kHz

Duty cycle: 1.0% ~ 99.0%

Temperature with K probe: 50.0°C ~ 760°C

Size (L x W x H): 220 x 81 x 42mm

Weight (including battery): 320g

Max conductor size: 30mm

Mechanical protection: IP40

Battery type: 3x1.5V batteries type AAA LR03

Display: 4 LCD (max 6000 counts), sign, decimal point, backlight

Reference temperature: 23°C ±5°C

Operating temperature: 0°C ÷ 40°C

Operating humidity: <75%RH

Storage temperature: -10°C ÷ 50°C

Storage humidity: <75%RH
