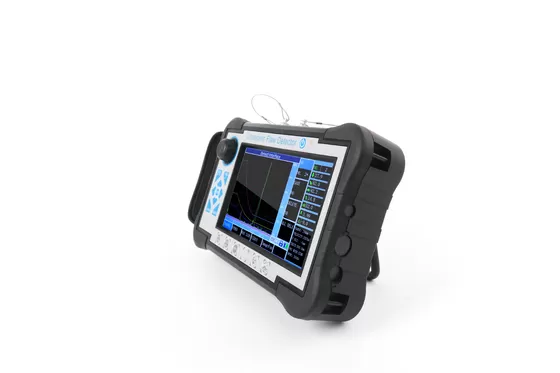

Technical info
Display: 7 inch TFT color screen,800*480 resolution
Operation mode: Button, Rotary, Touch Screen
Power supply: Lithium Ion Battery
Battery capacity: 5.0Ah
Power voltage: 12V
Power quantity: 1
Working time: ≥8 hours
Adapter input: DC100～240V 50Hz/60Hz
Adapter output: AC 12V
Adapter power: 36W
Data storage: SD card(16G)
Alarm: 1
Working Temperature: -10℃～45℃
Storage Temperature-20℃～60℃
IP Grade: IP65
Dimension:245*155*55mm
Weight:1.18kg(included battery)
Conventional UT Model
Probe Connector type: LEMO 00
Channel Type: Single channel
Channel Num: 500 group(able to be scaled)
Pulse Type: Negative sharp wave
Transmit Voltage: 50～350V,step in 50V
Damping: 560Ω
Gain: 0~110dB,step:0.5/2/6/12dB
Gain Fine Adjustment: -4~+4
Surface compensation: All Gain Range
Working Frequency0.5~20MHz；
Probe Type: Single,Dual, Through, Immersion type
Filter: Three optional: 1~4MHz/0.5~10MHz/2~20MHz
Detection Mode: Negative/Positive/Two-way/RF
Reject: 0~80%,step 1%
Testing Range: 0~15000mm,Minimum display range:15mm(in steel)
Material Velocity: 100~20000m/s
Pulse displacement: -10~1000mm
P DELAY: 0~200us
X-VAL: 0~100mm
Guide: Weld, Sheet, Forging inspection
Testing Point: Peak/X-val/J val
Measurement: Gate: Amplitude,Amplitude dB value,Range,Horizontal distance,Vertical distance,The difference value between A and B Gate
Cursor:2 cross cursors, can test the horizontal and vertical distance, and the distance between cursors(under B scan function)
Gate: Gate start:all range
Gate width:all range
Gate level:10~90%,step:1%
Curve: DAC, maximum six curves, meet to NB/T 47013,GB/T 11345,GB/T 29712, and other standards; TCG, maximum six curves; AVG
Other functions: Full screen, cursor switch(range/Height/Horizon), single/continuous auto gain(10~100%, step 10%), echo compare,echo full, peak envelope,peak memory,fast scan,outside mode,screenshot. Peak freeze/Crack depth/Gate expansion//curved surface modification/ B scan/Flat weld simulation//video
Alarm: Sound and light alarm
Sensitivity Leavings: ≥65dB(200mm—Φ2FH,2.5PΦ20)
Horizontal linearity error: ≤0.3%
Vertical linearity error: ≤3%
Amplitude linearity error: ≤±2%
Attenuator accuracy: 20dB ±1 dB
Dynamic range: ≥32dB
Distant resolution: ≥26dB
Noise Level: ＜40×10-9 V/
Including
1. Main unit: 1
2. Power adaptor: 1
3. probe connecting cable: 2
4. Instrument case: 1
5. Instruction manual: 1
6. Straight probe 10mm 2.5MHz: 1
7. Angle probe 13x13 60degrees 2.5MHz: 1
8. Warranty card: 1
Key features
●High-precision quantification and positioning to meet the requirements of near and far distance detection
●The near-field blind zone is small, can meet the detecting requirements for small-diameter and thin-walled pipe.
●Auto calibration function:one-button auto calibration,easy to operate, automatic test probe “P Delay”,”K value”,”X value” and the velocity
●Automatic display the defect echo position(Depth:d, Horizontal:p,Distance:s, Amplitude,dB,ф )
●Switch three scales freely(Depth:d, Horizontal:p,Distance:s)
●Auto gain, peak envelope, peak memory functions, which can improve the detection efficiency.
●Automatically record the flaw detection process and dynamic playback
●φ value calculation:Forging flaw detection by straight probe, can find the highest wave to conversion φ value automatically
●500 independent channels(can be expandable), which can input and store the detection standards of any industries freely, do not need to carry the standard blocks for on-site inspection.
●Store, playback 500 A-scan waves and data freely
● The DAC, AVG, and TCG curves (depth compensation) are automatically generated and can be segmented. The sampling points are unrestricted and can be corrected and compensated.
●14 built-in inspection standards
●Free to enter any industry standards
●Pulse width and strength can adjustable
●B scan and B color scan function；
●Can communicate with the computer, and export WORD. File, also the detection report
●IP65 ABS plastic case, sturdy and durable,water-proof and dust-proof, and excellent anti-interference ability
●Use (wireless) communication software to analyze data print reports, etc；
●260,000-color true color screen, is suitable for working environment under strong light or low light
●High performance lithium battery, can work continuously for 8-10 hours
●Real-time clock recording: real-time flaw detection date, time tracking record, and storage
●Power-down protection, storage data can not lost
●Flaw detection parameters can be automatically tested or preset
●Digital reject, does not affect gain and linearity
●Gain compensation: Db attenuation can be corrected for surface roughness, curved surfaces, long-range flaw detection of thick work-pieces, etc.
●Can operate the flaw detector by software at the PC, achieving the goal of computer-controlled flaw detector to detecting
